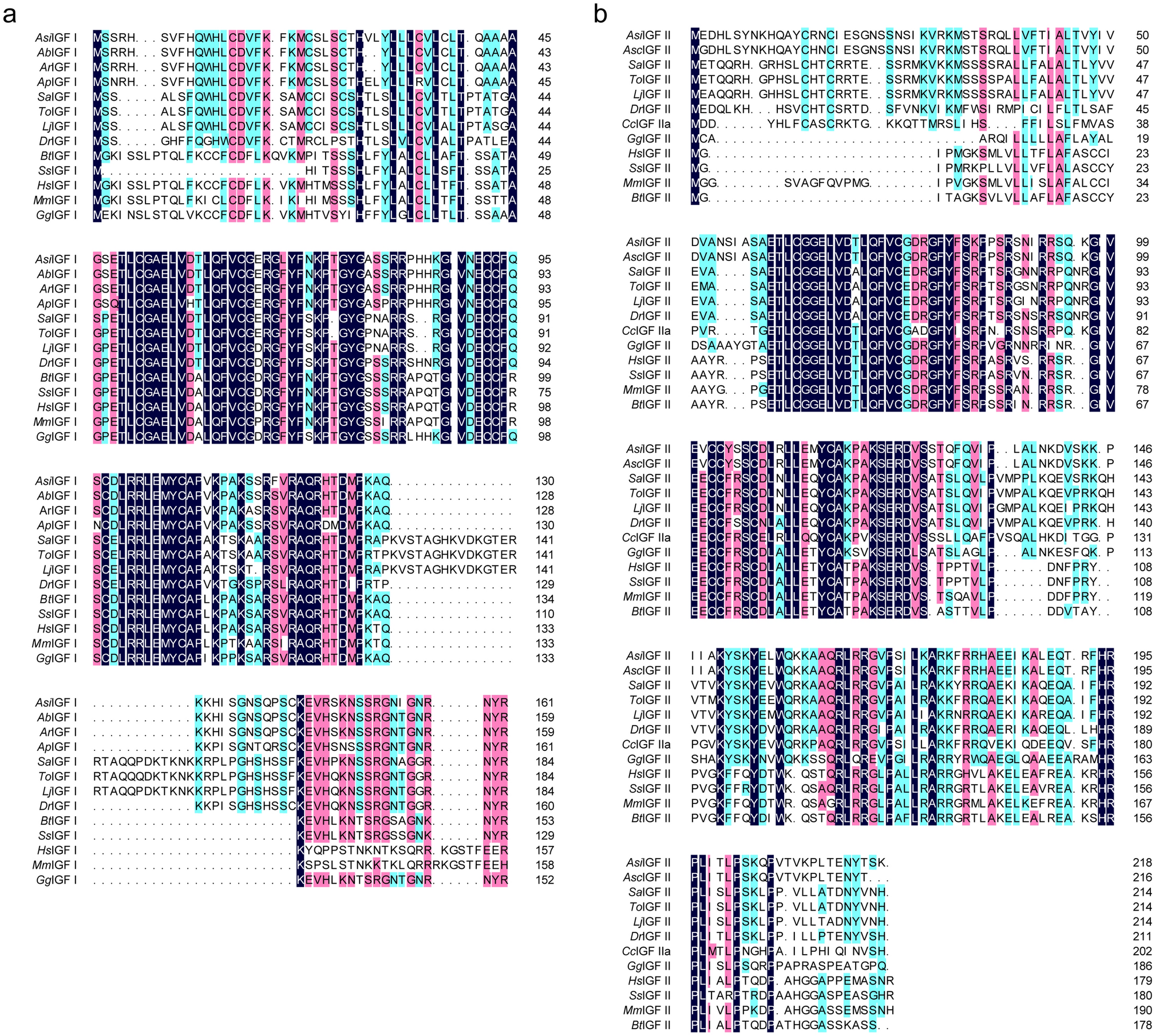

Figure 5

Multiple alignment of IGFs proteins in different species. The IGFs sequences from other species were downloaded from GenBank. The references for the GenBank Accession Numbers of IGFs amino acid sequences are as follows: Acipenser sinensis IGFs (AsiIGFs, MK028132 and MK028133); Acipenser ruthenus IGF I (ArIGF I, DQ329352); Acipenser baerii IGF I (AbIGF I, FJ428828); Acipenser persicus IGF I (ApIGF I, GU325629); Acipenser schrenckii IGF II (AscIGF II, KC484697); Danio rerio IGFs (DrIGFs, NM_131825 and AY049027); Lateolabrax japonicas IGFs (LjIGFs, JN596878 and JN596879); Sparus aurata IGFs (SaIGFs, AY996779 and AY996778); Trachinotus ovatus IGFs (ToIGFs, KT727922 and KT727923); Gallus gallus IGFs (GgIGFs, NM_001004384 and NM_001030342); Bos Taurus IGFs (BtIGFs, NM_001077828 and NM_174087); Sus scrofa IGFs (SsIGFs, NM_214256 and XM_021080648); Homo sapiens IGFs (HsIGFs, NM_001111283 and NP_001121070); Mus musculus IGFs (MmIGFs, AY878193 and M14951.1) and Cyprinus carpio IGF II (CcIGF II, HM641129). (a) Chinese sturgeon IGF I. (b) Chinese sturgeon IGF II.
