Figure 2
From: Genetic regulation of gene expression of MIF family members in lung tissue

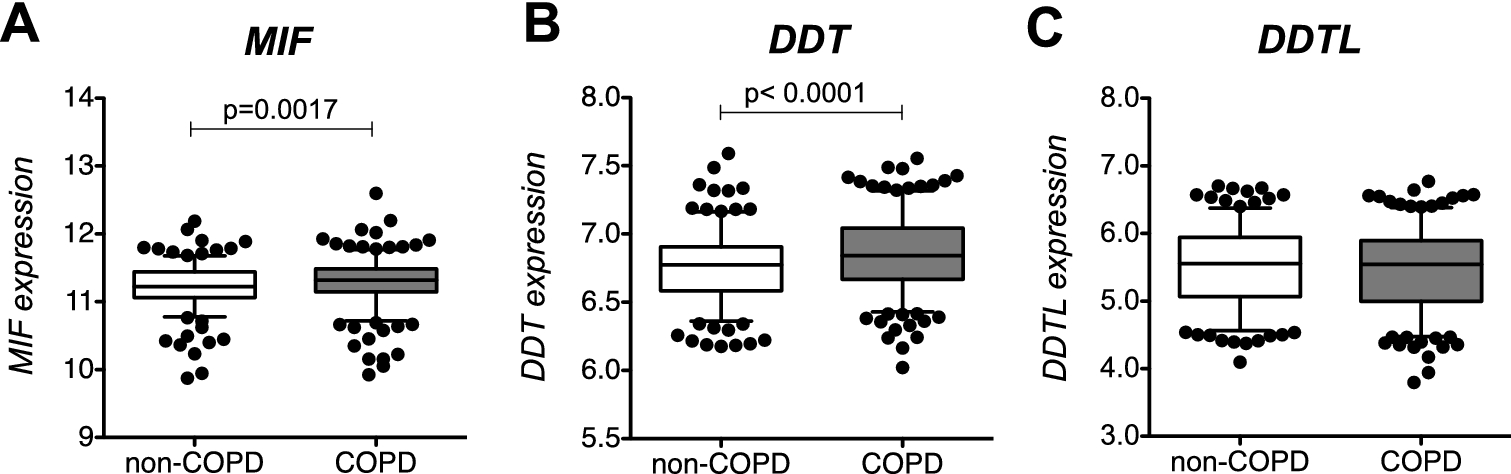

MIF, DDT and DDTL expression in lung tissue from COPD and non-COPD patients. Gene expression profiles for MIF (A), DDT (B) and DDTL (C) were obtained using a custom Affymetrix array (see GEO platform GPL10379), using 276 samples of COPD patients and 236 samples of non-COPD subjects, from the lung tissue database. Units of gene expression (y axis) represent Log2(microarray intensity) units. Data are presented as box and whiskers plots of the 5–95 percentile with median. Statistical differences were tested with Mann Whitney test.
