Figure 6
From: Genetic regulation of gene expression of MIF family members in lung tissue

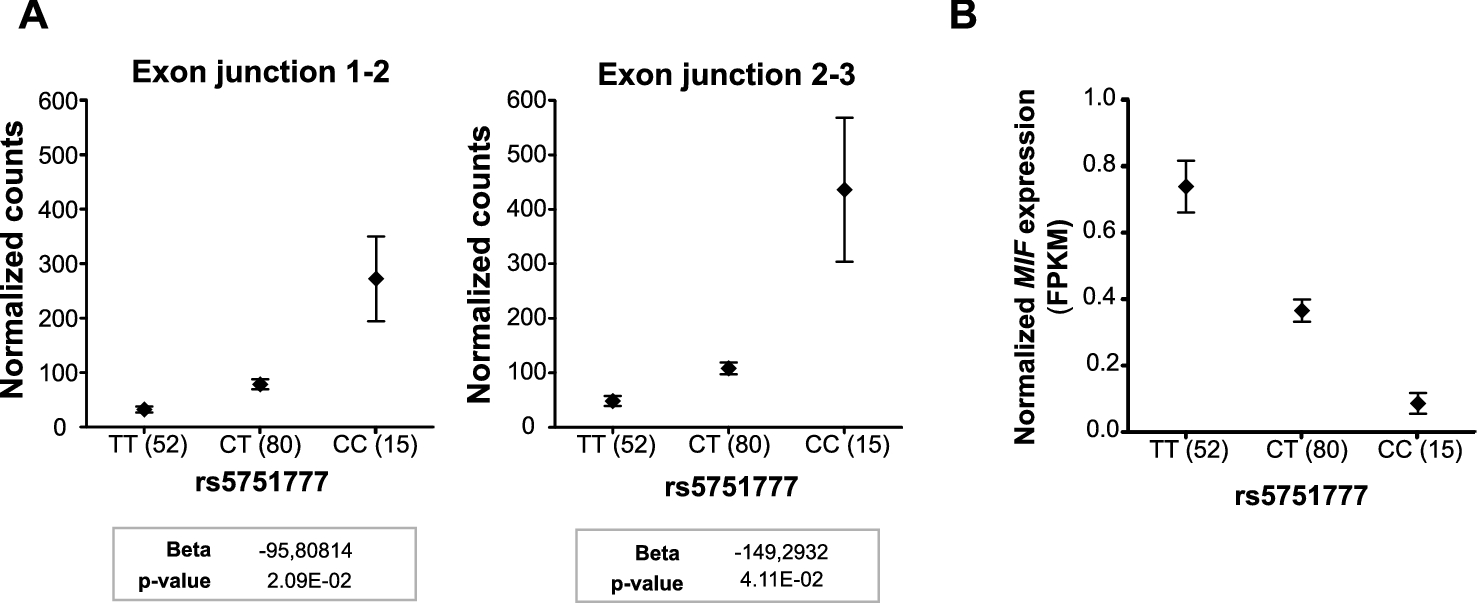

Effect of rs5751777 on expression of MIF splice variants and on total MIF. (A) SpliceQTL results. Split read counts mapping across exon–exon junction according to rs5751777 genotype. The number of split reads of a given junction pair was normalized per sample by correcting for variation in library size and transcript abundance in a gene-wise fashion. (B) Effect of rs5751777 on normalized MIF expression, represented as fragments per kilobase of exon model per million reads mapped (FPKM). Graphs are presented as mean ± standard error of the mean.
