Figure 7
From: Numerical model of hybrid mode-locked Tm-doped all-fibre laser

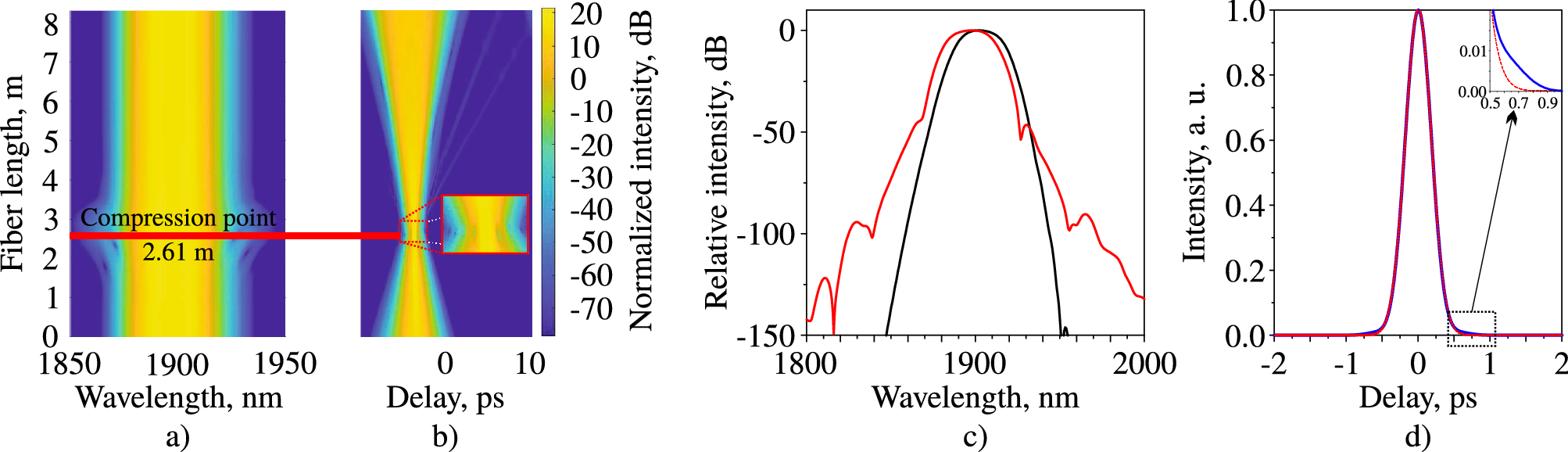

(a) Spectral and (b) temporal pulse evolution on the output SMF-28 fibre length, spectrum at the laser output (c, black curve), spectrum at the compression point (c, red curve), autocorrelation trace at the compression point (d, blue curve), Gaussian fit (d, red dotted curve).
