Figure 6

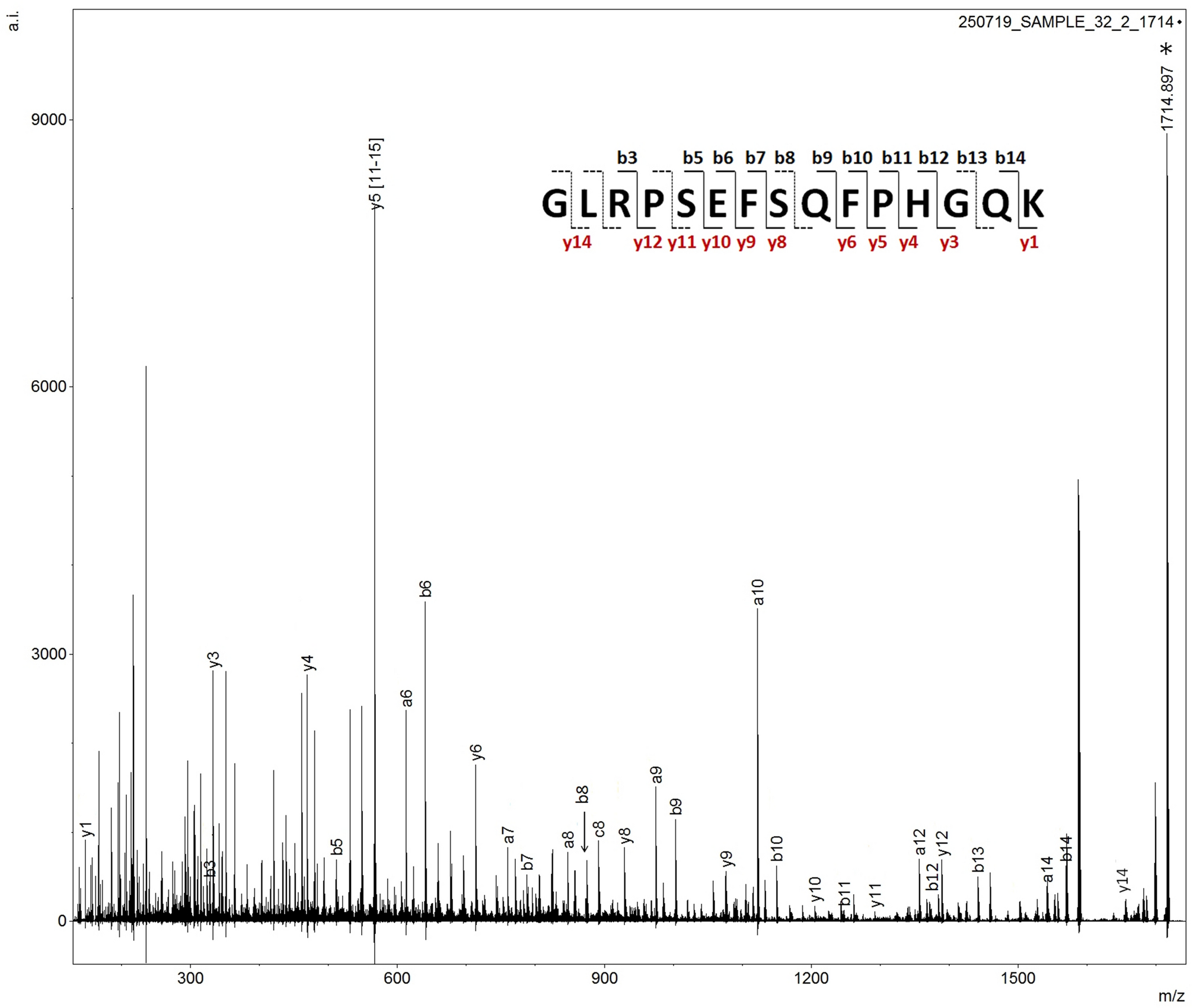

MS/MS spectrum and ion fragment annotation of SEM-1 detected in sample 32. b and y ion are annotated and also shown on the peptide sequence; a and c fragment ions are only annotated in the spectrum. Missing annotation on the peptide sequence denotes lack of detection of that particular b/y ion fragment.
