Figure 5
From: Dyke apertures record stress accumulation during sustained volcanism

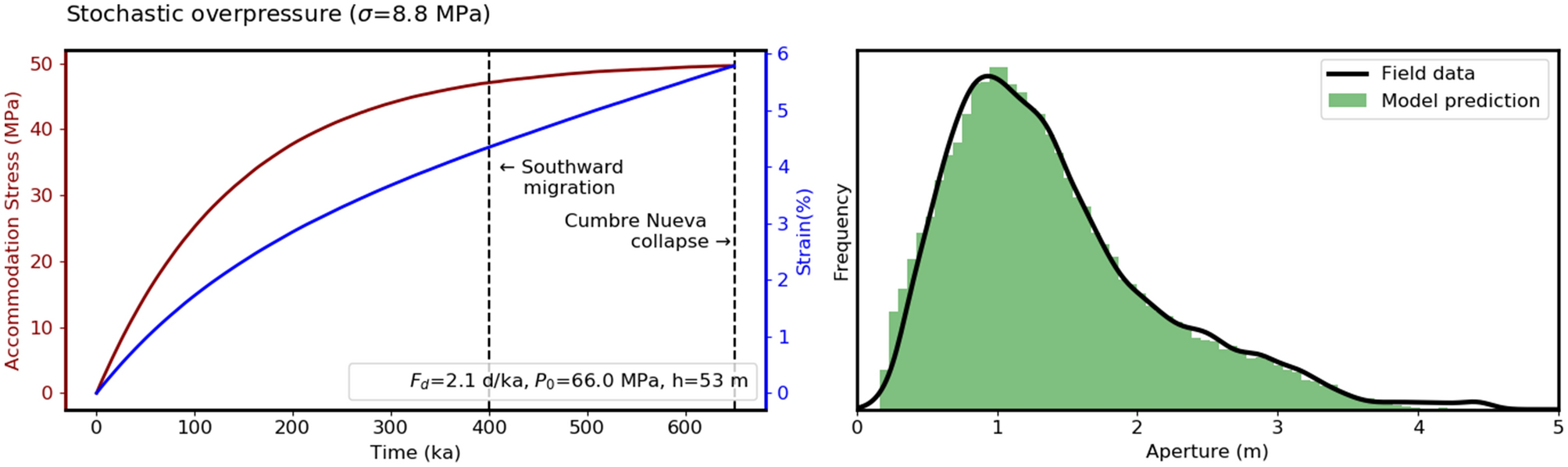

A numerical solution to the previously described Maxwell accommodation model using the elastic parameters described in the text, randomly varying magma pressure sampled from a normal distribution, and calibrated using Powell minimization to fit observed aperture data. The optimised parameters (µ = 3.0 × 1022, Fd = 2.1 days/ka, h = 53 m and P = Ν(µ = 66, σ = 8.8) MPa) give results that closely match the observations. The final bulk strain of 5.5% and equilibrium excess pressure of 17.5 MPa were not used to calibrate the model, and match field estimates (Figs. 3, 4) excellently. Note, however, that this is probably not a unique solution and so there may be other parameter combinations that reproduce the observed aperture data equally well.
