From: Prebiotic effects of yeast mannan, which selectively promotes Bacteroides thetaiotaomicron and Bacteroides ovatus in a human colonic microbiota model

Figure 7The alternative text for this image may have been generated using AI.

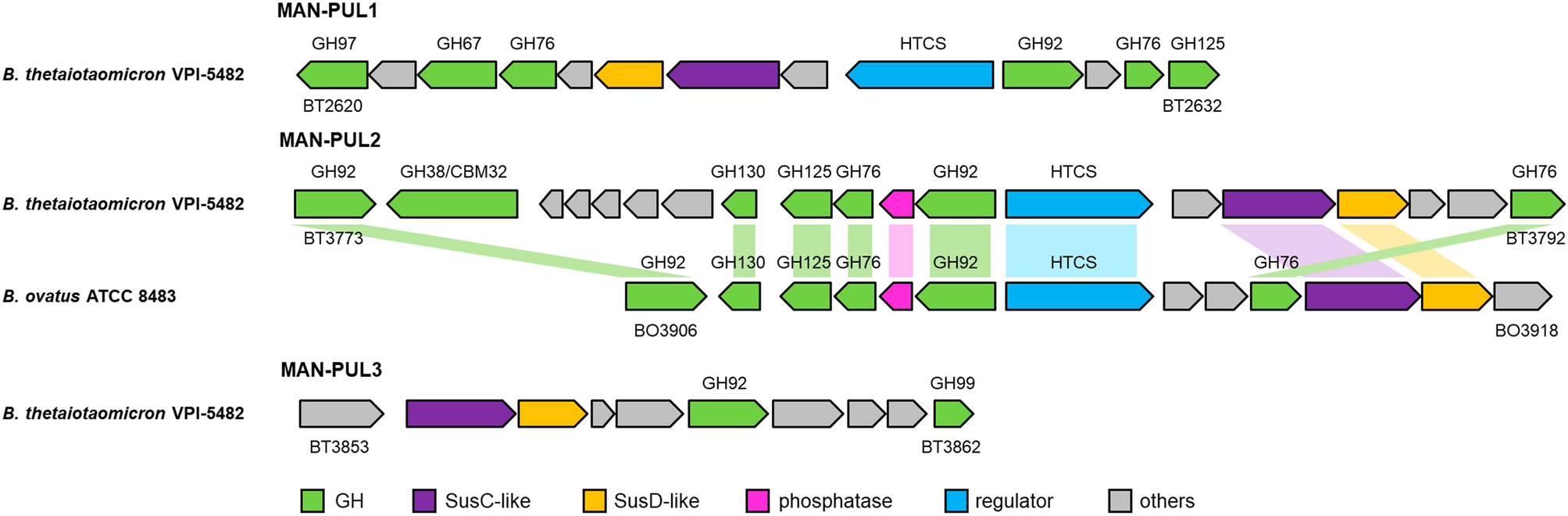

Bacteroides thetaiotaomicron VPI-5842 and Bacteroides ovatus ATCC 8483 yeast mannan polysaccharide utilisation loci (PULs). Each gene is depicted to reflect its orientation and scale on the genome. The number below each gene is its locus tag. Genes encoding known or predicted functionalities are colour-coded: glycoside hydrolase (GH; green), SusC-like proteins (SusC-like; purple), SusD-like proteins (SusD-like; orange), phosphatase (phosphatase; pink), regulatory proteins (regulator; blue), and other proteins (others; grey).
