Figure 2
From: Biomechanical analysis of costochondral graft fracture in temporomandibular joint replacement

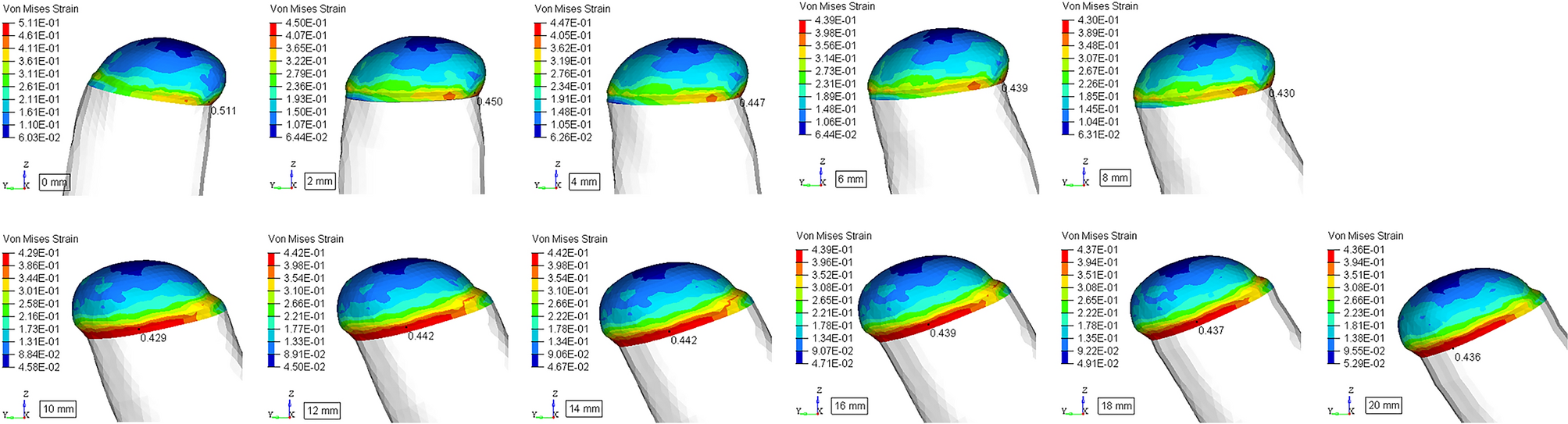

Stress and strain distribution on the CCG. From 0 to 8 mm, cartilage deformed forward, stress slightly concentrated on the anterior edge of the neck; from 10 to 20 mm, cartilage deformed backward, stress heavily concentrated on the posterior edge of the neck.
