Figure 2
From: First approach to pod dehiscence in faba bean: genetic and histological analyses

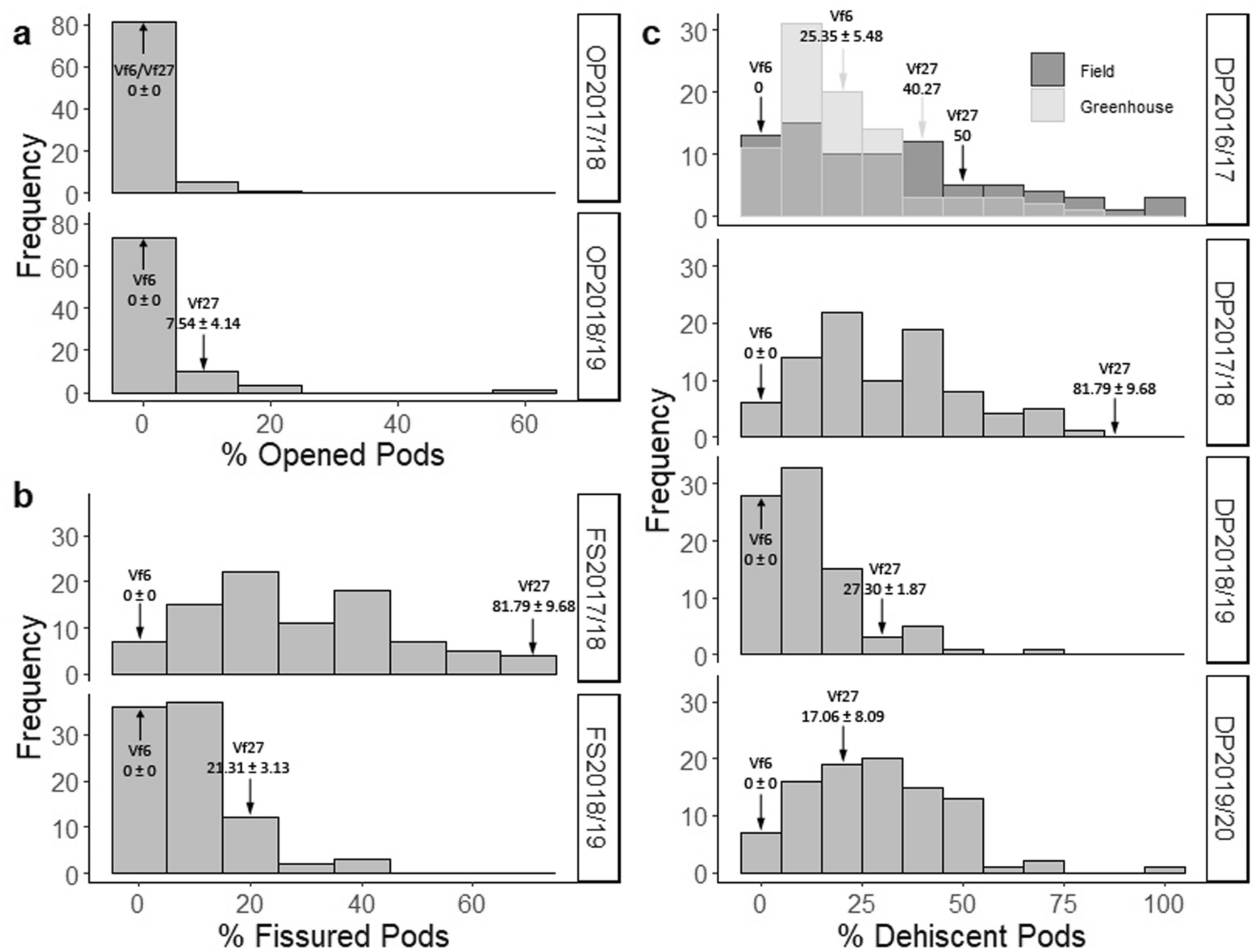

Frequency distribution of dehiscence traits recorded in the Vf6 x Vf27 RIL population. (a) Opened Pods (OP) in 2017/18 and 2018/19; (b) Fissured Pods (FS) in 2017/18 and 2018/19; (c) Dehiscent Pods (DP) in 2016/17, 2017/18, 2018/19 and 2019/20. The phenotypic values (mean ± SE) of the parental lines are indicated by arrows.
