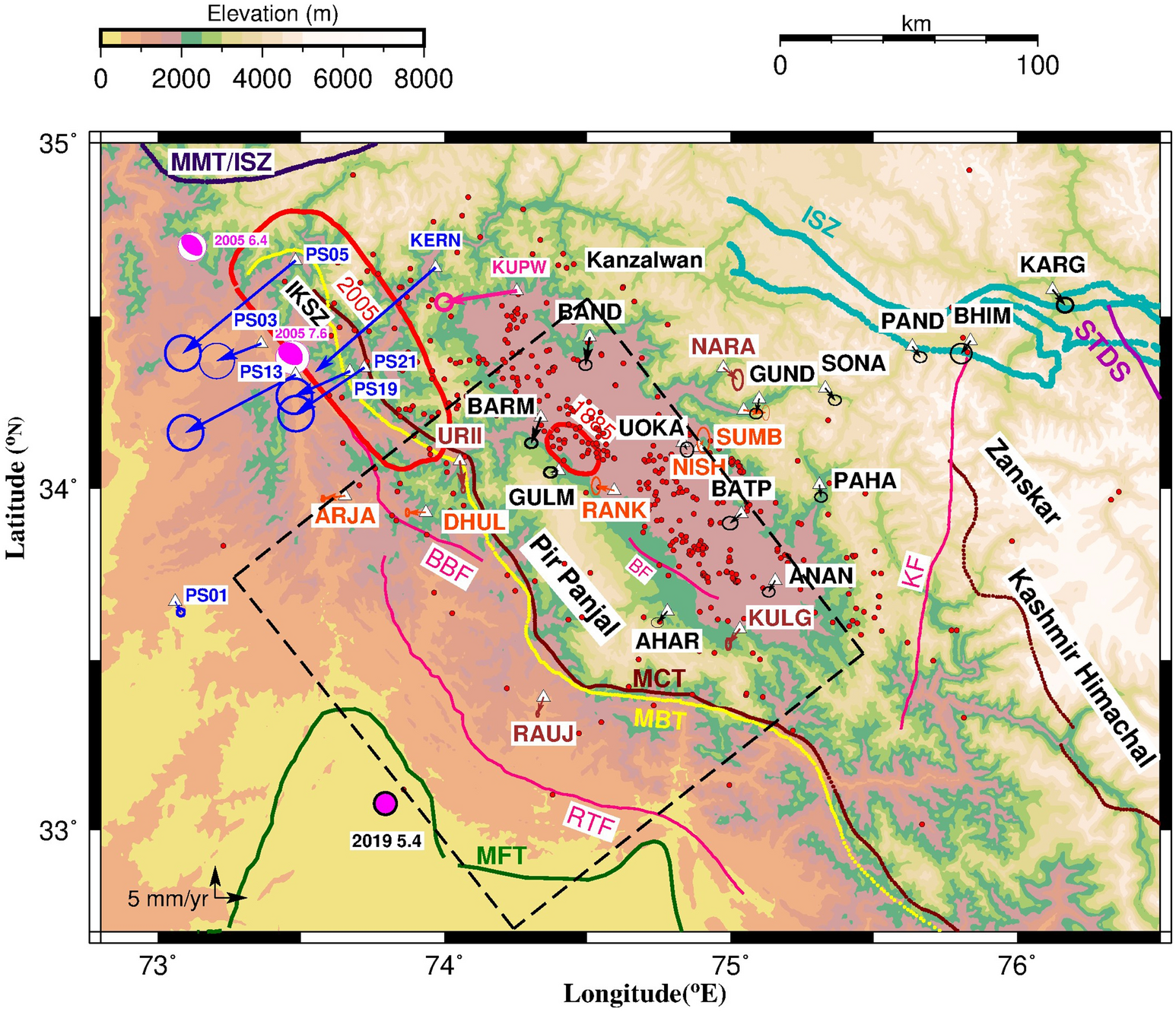

Figure 4

Topographic Map of Kashmir valley and adjoining regions along with surface projection of dislocation plane (dashed box) with residual velocities of the cGPS sites: Black (present study), Red¹⁴ and Brown²⁵. Solid red circles denote seismic events of M ≥ 1 from collocated broadband network. India fixed velocity (bold Pink) is plotted at KUPW GPS site to the extreme northwest of Kashmir valley. Blue velocity vectors at Pakistan GPS sites PS01, PS03, PS05, PS13, PS19, PS21 from¹⁰ denote post seismic displacements of October 2005 Muzaffarabad earthquake during March 2007 to August 2009 and Indian GPS site KERN¹¹ soon after the earthquake. Published post seismic displacements were transformed to ITRF14 reference frame and converted to India fixed reference frame using the angular velocity of Indian plate given by¹⁷. Fault lines and ruptures are same as Fig. 1, 2. Figure was created using GMT (Generic mapping tool) software version 5.2.1 (ftp://ftp.soest.hawaii.edu/gmt/legacy/)⁴⁶.
