Figure 2
From: Artificial modulation of cell width significantly affects the division time of Escherichia coli

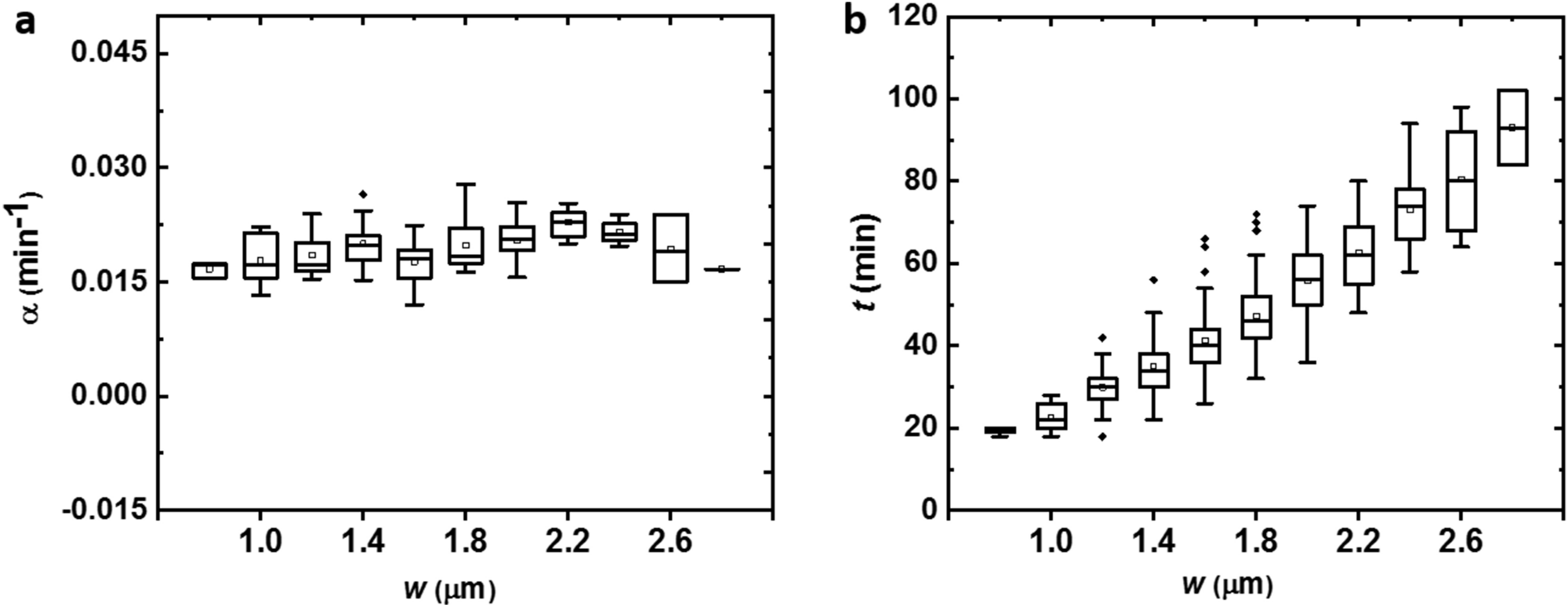

Cell biomass growth rate α and division time t of cells with different widths. (a) The box chart presenting cells growing in channels with different widths w have a uniform growth rate α. (b) Cell division time t increases as cell width w increases. see Supplementary Table S3 for sample size per width.
