Figure 2
From: EEG microstate complexity for aiding early diagnosis of Alzheimer’s disease

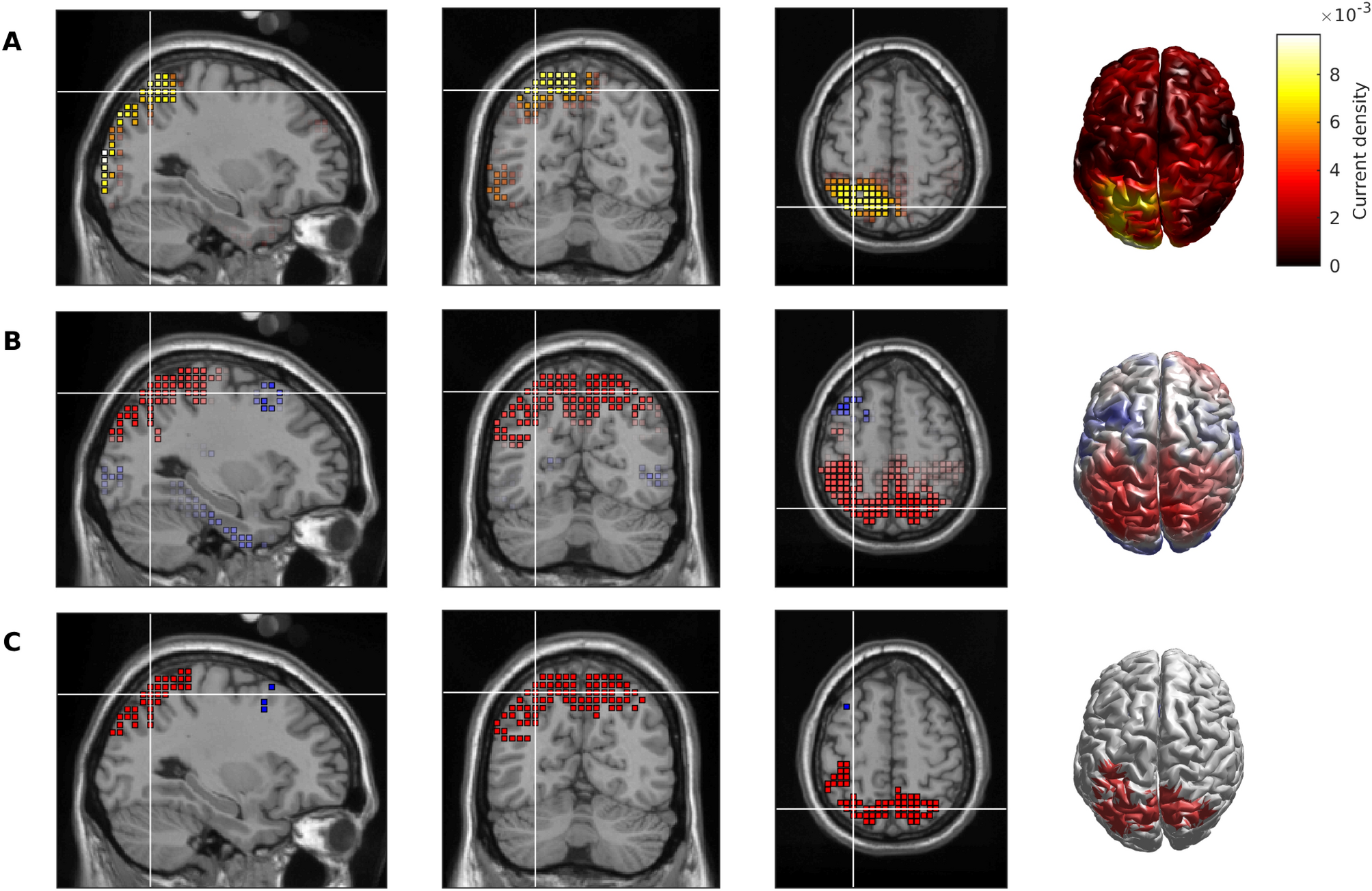

Cortical source generators underpinning alterations to microstate class D in AD. (A) Absolute value of the eLORETA solution to the instantaneous topography given by taking the difference between the global class D maps for HOA and AD. (B) t-statistic for voxel-wise comparisons of the subject-wise class D maps for HOA versus AD. Red indicates absolute value of current density is larger for HOA than AD, whilst blue is AD > HOA. (C) Voxels with t-values such that P < .05. Red voxels indicate HOA > AD, and blue voxels are AD > HOA.
