Figure 6

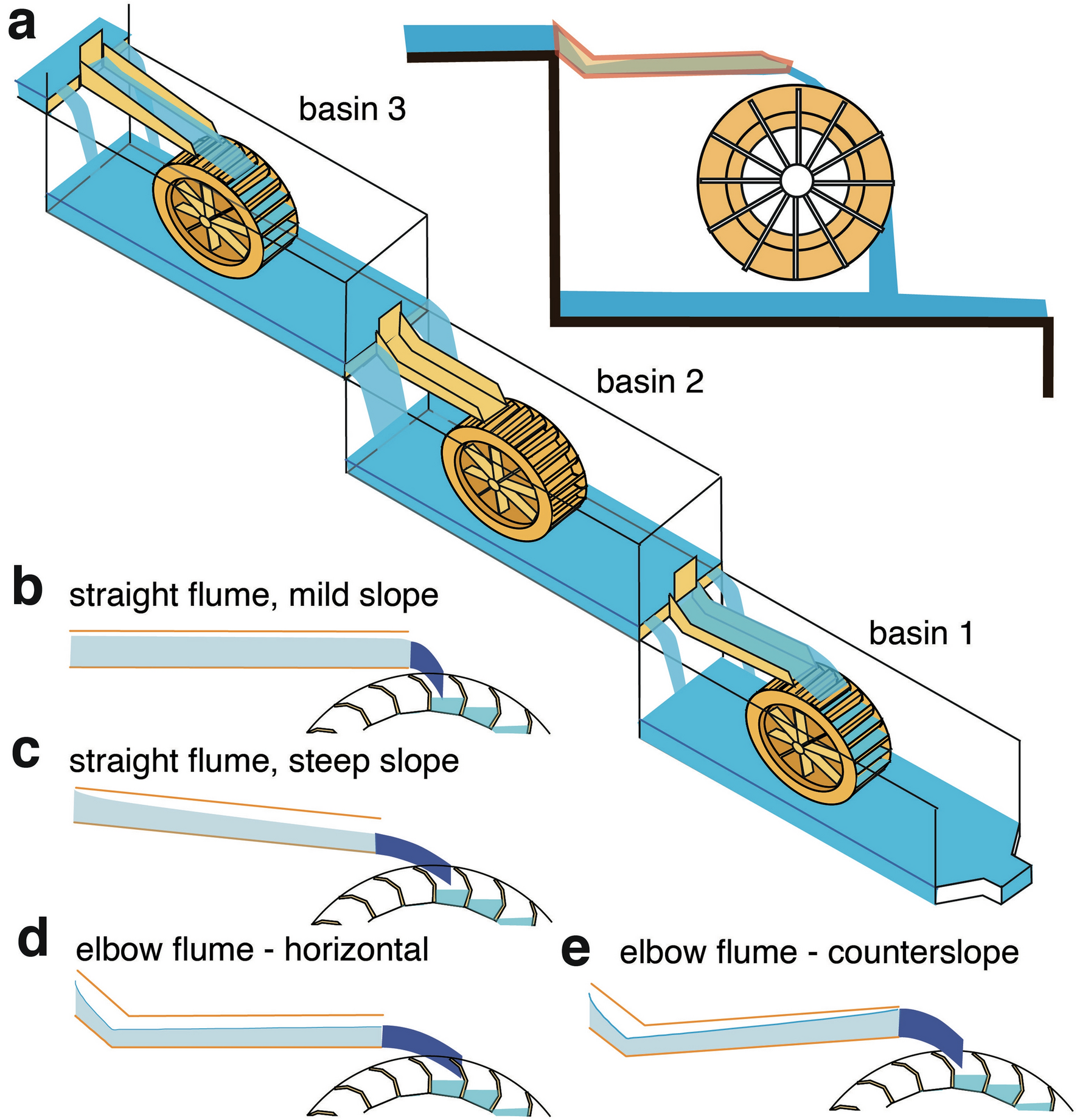

(a) Reconstruction of the three lowermost basins of the Barbegal complex, using elbow-flumes in basins 1 and 2. Overflow weirs beside the flumes allowed compensation for sudden fluctuations in discharge. (b)–(e) Summarized results of calculations on flow in four types of flumes, showing the presumed shape of outflow water jets.
