Figure 12

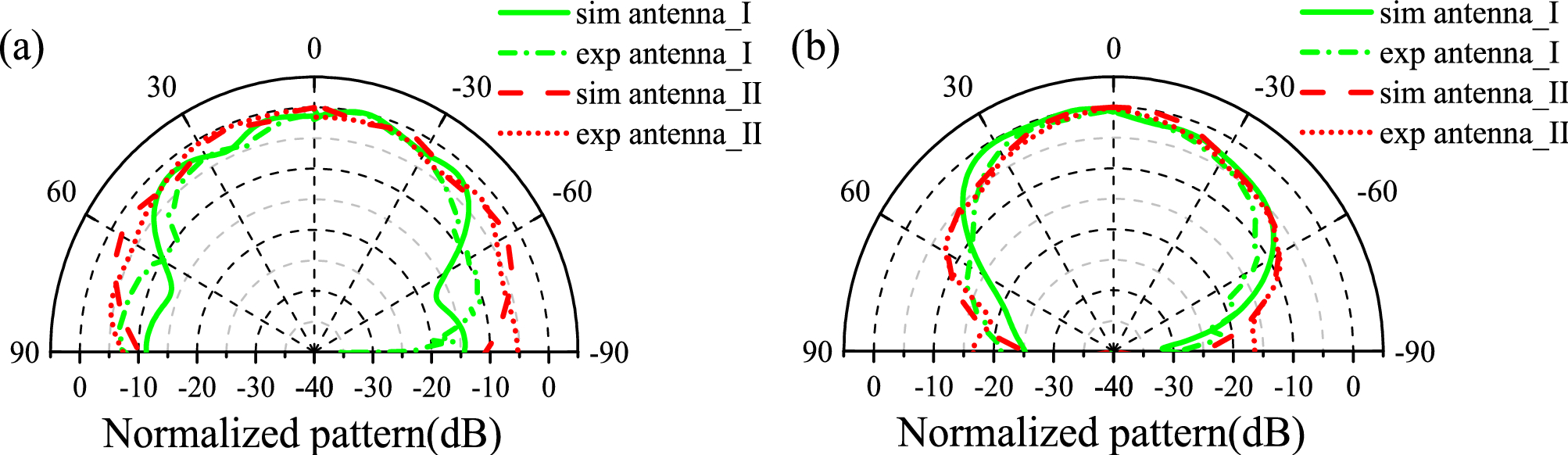

The measured and re-simulated normalized radiation patterns (a) in the E-plane (xoz plane) and (b) H-plane (yoz plane) of antenna I at 10.4 GHz and antenna II at 10.9 GHz.
Figure 12 | Scientific Reports
The measured and re-simulated normalized radiation patterns (a) in the E-plane (xoz plane) and (b) H-plane (yoz plane) of antenna I at 10.4 GHz and antenna II at 10.9 GHz.
