Figure 2

From: Characterizing the evolution life cycle of the Sunkoshi landslide in Nepal with multi-source SAR data

Figure 2

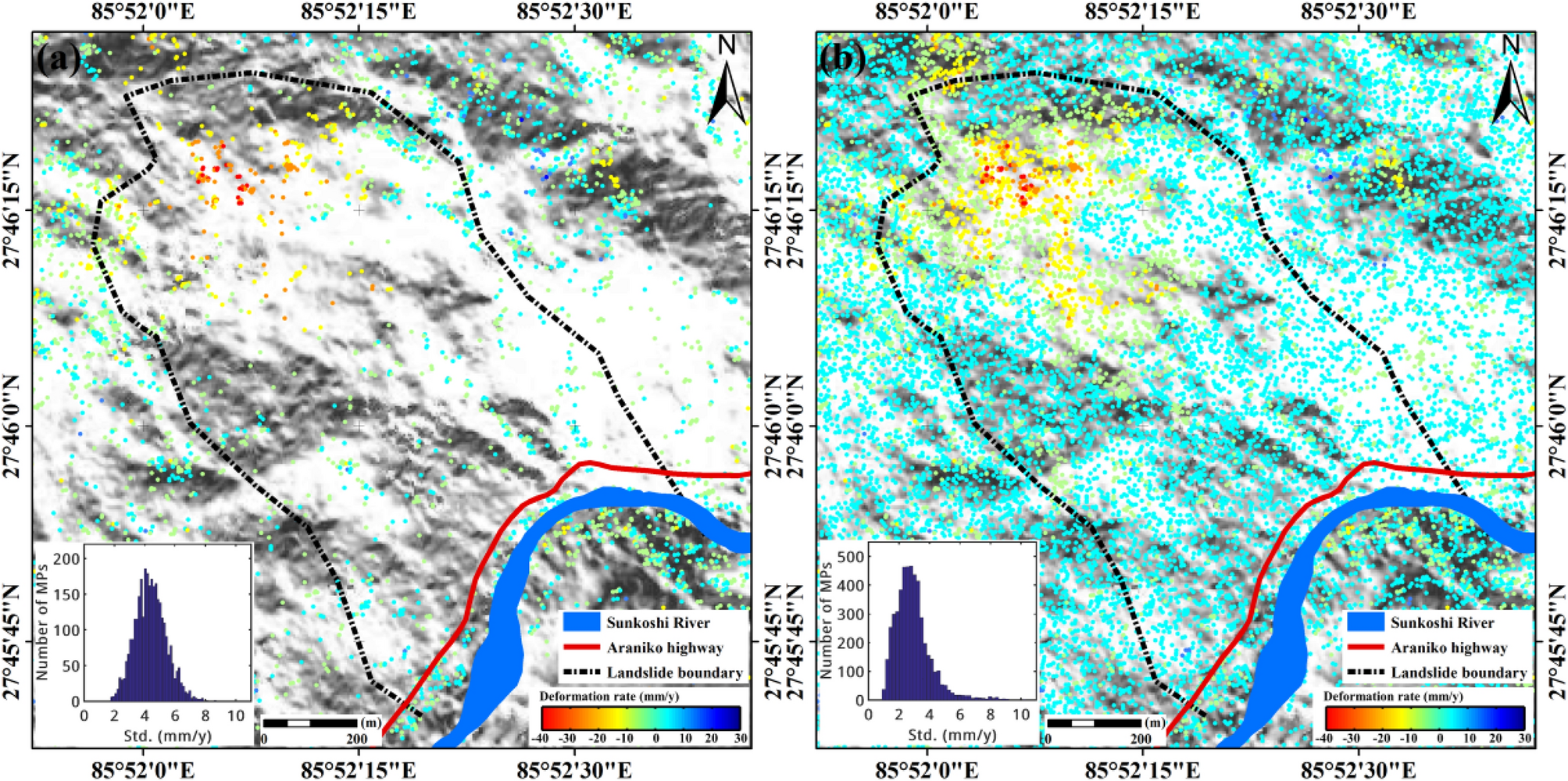

Results of pre-disaster annual deformation rate of Sunkoshi landslide obtained by (a) SBAS-InSAR and (b) DS-InSAR, separately. The Sunkoshi River and Araniko highway are rendered in their original locations before destruction. The subfigures on the lower-left corner show the histograms of standard deviation distribution of deformation rate. The maps were generated using ESRI ArcGIS 10.1 (https://www.esri.com/en-us/home).
