From: Fine-tuning of AMPK–ULK1–mTORC1 regulatory triangle is crucial for autophagy oscillation

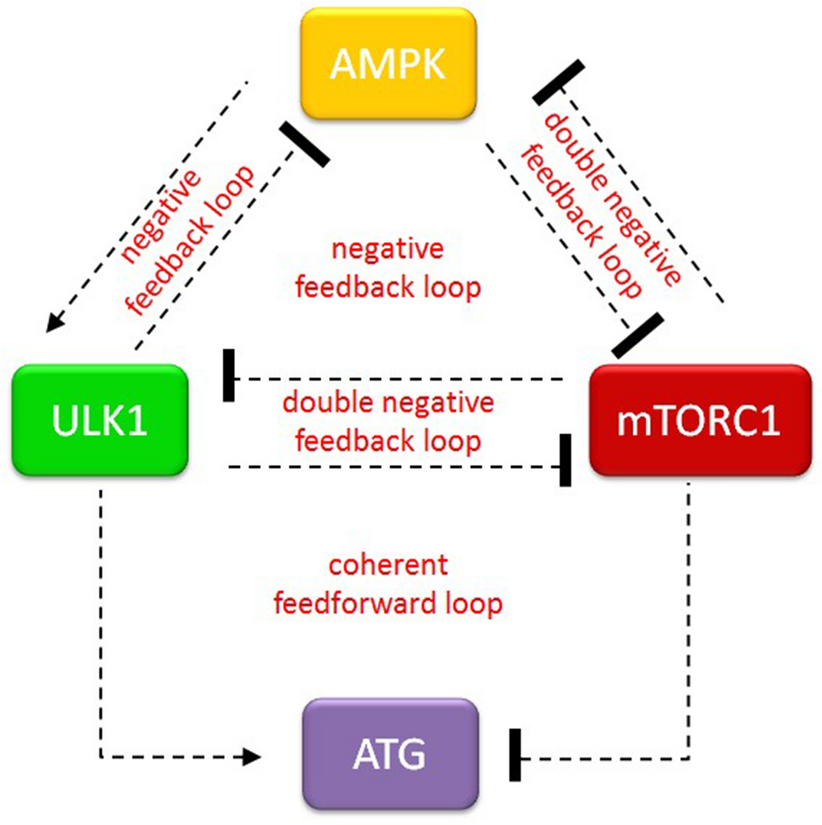

The wiring diagram of AMPK-P–mTORC1–ULK1-P regulatory triangle controlled stress response mechanism. The AMPK-P, mTORC1 and ULK1-P are denoted by isolated orange, red and green boxes, respectively. ATG (see purple box) refers to autophagy activator complex. Dashed line shows how the components can influence each other, while blocked end lines denote inhibition.
