Figure 8
From: Lithium containing layered high entropy oxide structures

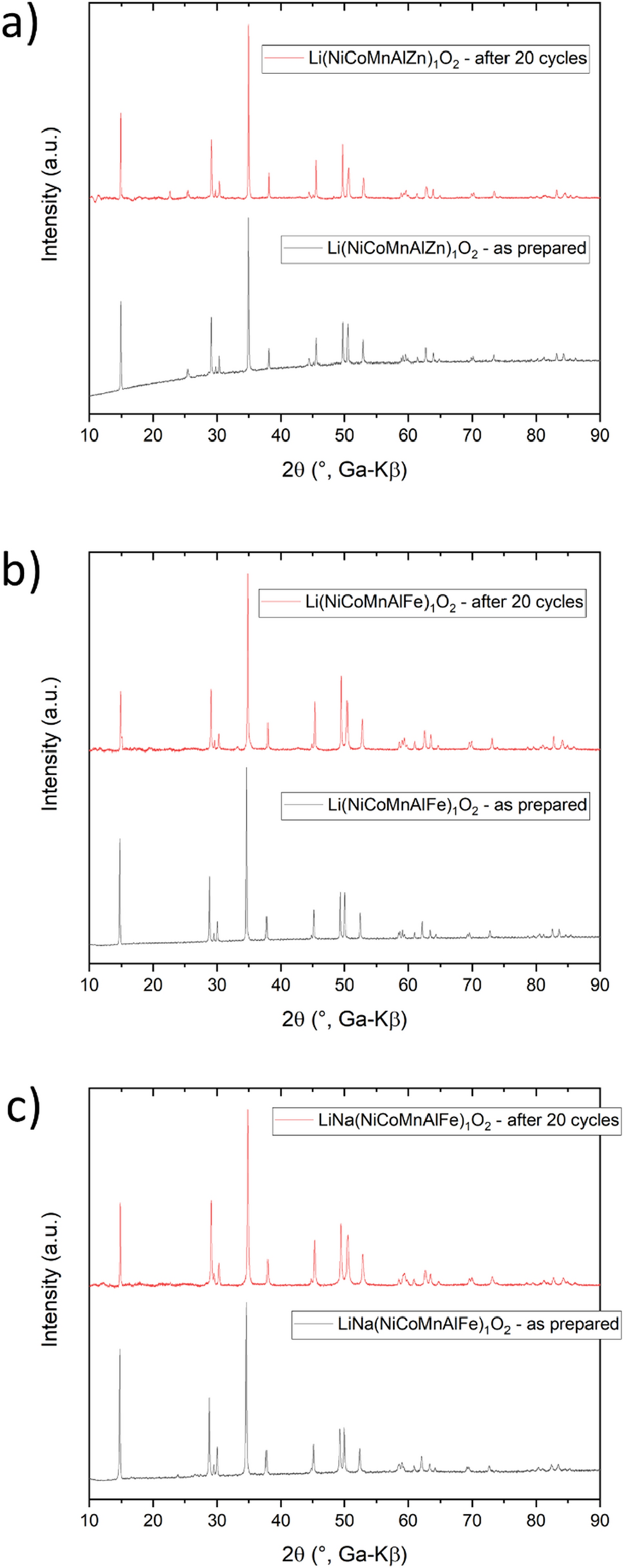

XRD patterns of (a) Li(NiCoMnAlZn)1O2, (b) Li(NiCoMnAlFe)1O2 and (c) LiNa(NiCoMnAlFe)1O2 recorded before and after electrochemical cycling.
