Figure 1

From: Material properties and structure of natural graphite sheet

Figure 1The alternative text for this image may have been generated using AI.

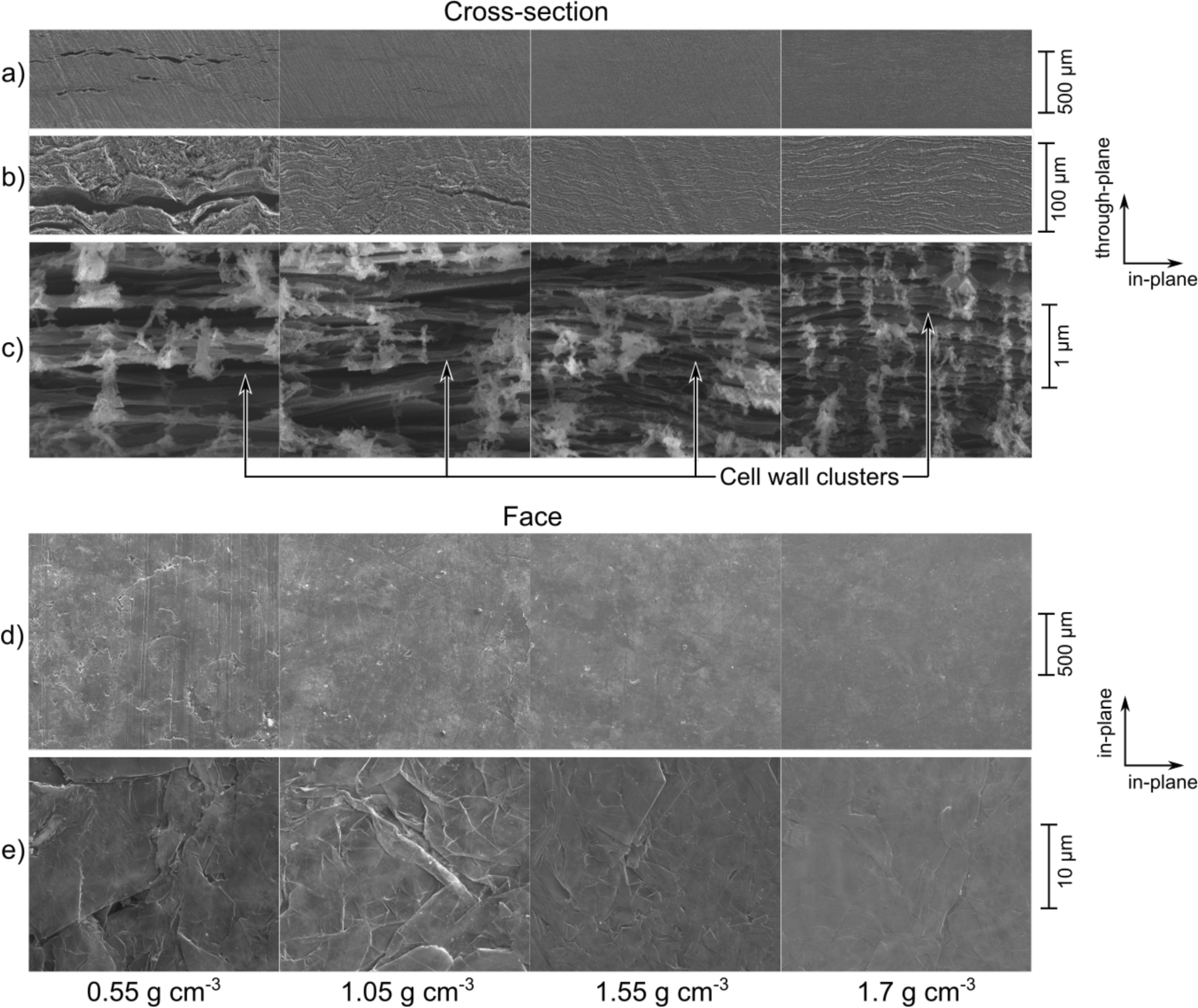

Microscope images of NGS cross-section (a–c) and face (d, e). The high-magnification cross-section images c) have been rotated to demonstrate the change of thickness and spacing of cell walls and they do not represent the orientation angle accurately. High-resolution images are available in the supplementary dataset36.
