Figure 1

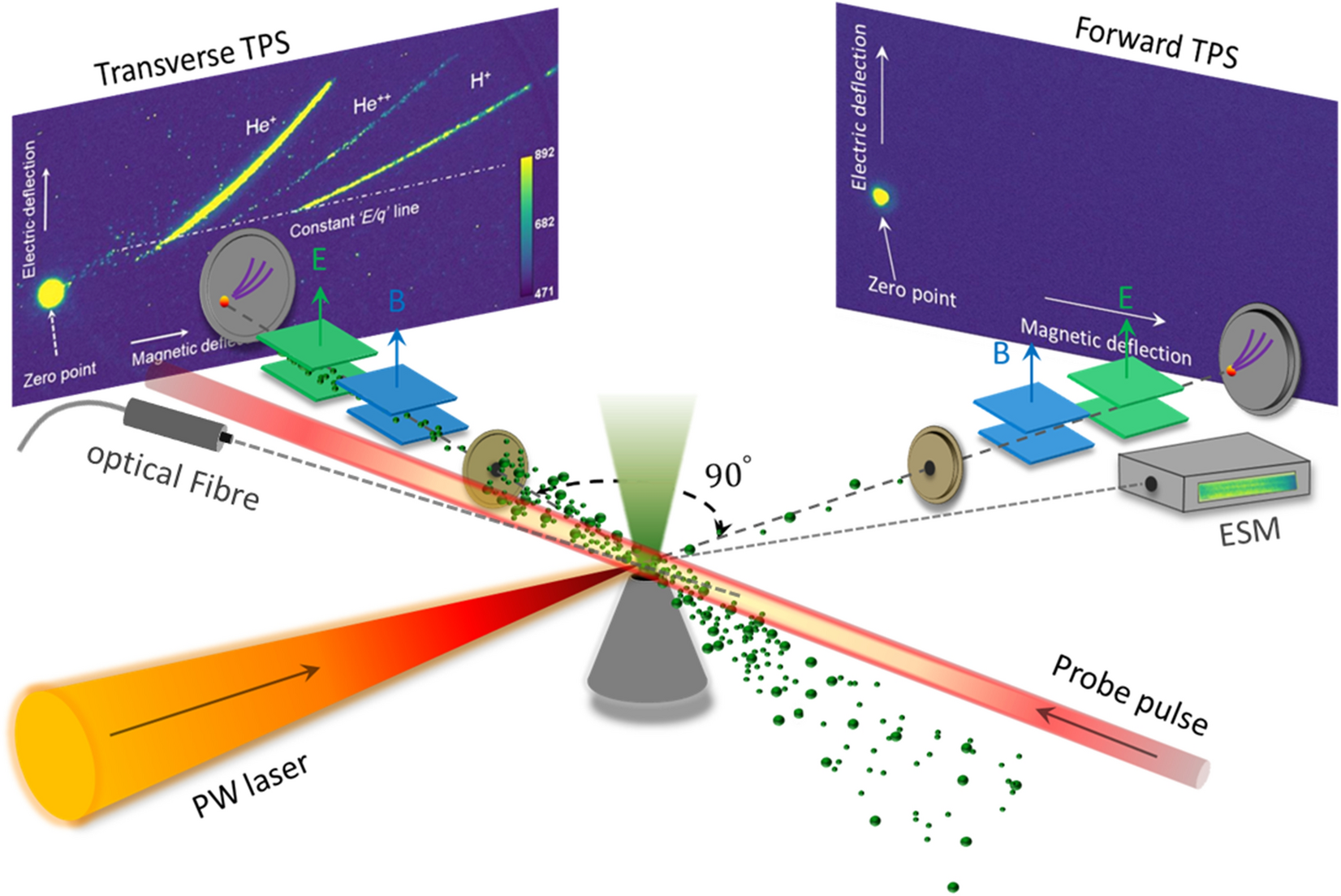

Experimental setup: NCD plasma produced by focusing 1-PW, 30-fs pump laser onto a high-density supersonic gas jet. A 35 fs, 800 nm probe pulse records the plasma shadowgram at different time delays. Two Thomson parabola spectrometers (TPS) were installed for ion energy spectra in the forward and the transverse directions and an electron spectrometer (ESM) for electron energy spectra. An optical fiber spectrometer recorded the Raman scattering signal from the plasma.
