From: Seascape connectivity of European anchovy in the Central Mediterranean Sea revealed by weighted Lagrangian backtracking and bio-energetic modelling

Figure 3

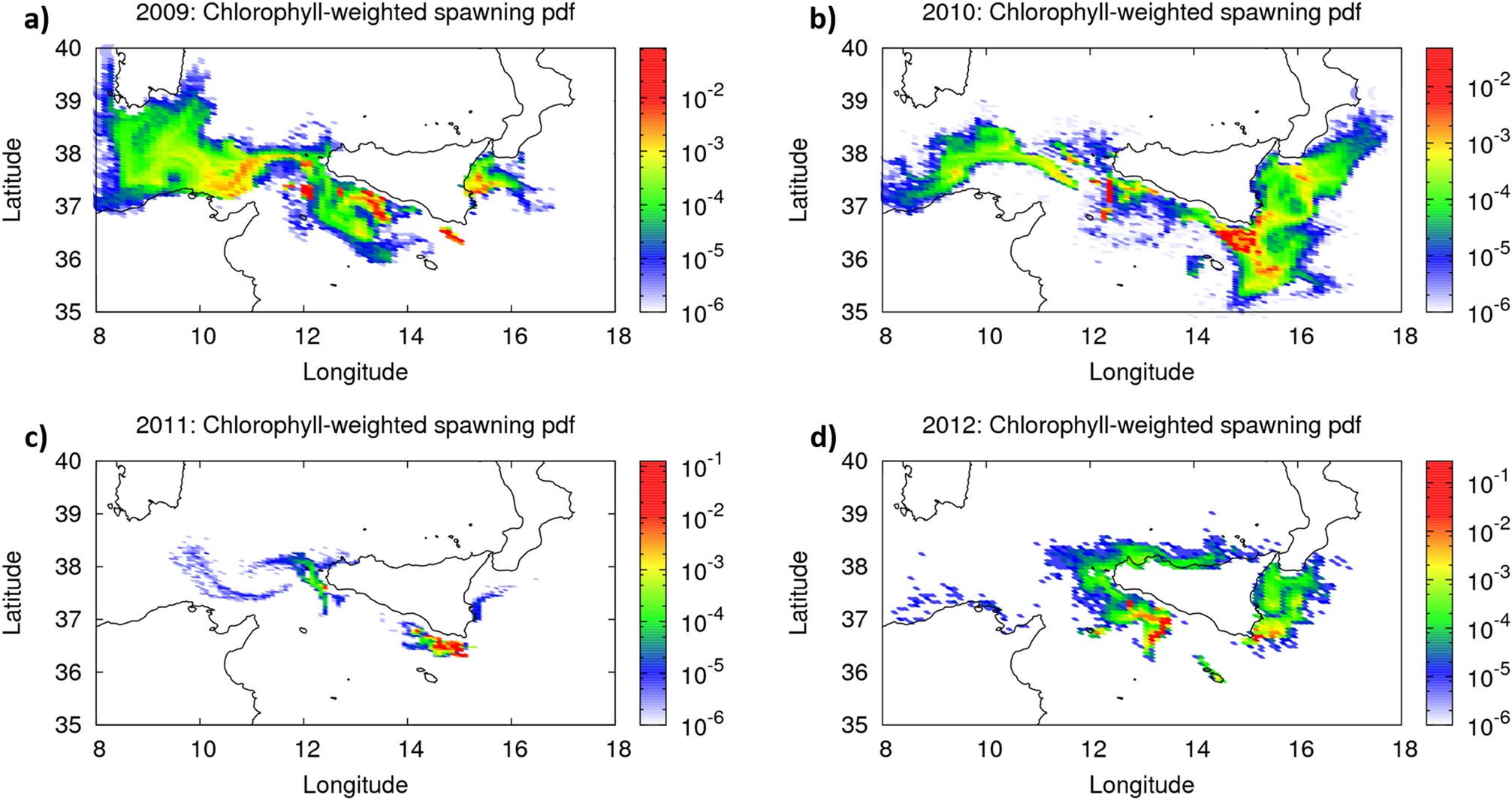

Probability distribution function (pdf) of chlorophyll-weighted spawning areas, as reconstructed from back-trajectories of anchovy larvae, collected within the GSA16, in the year 2009 (a), 2010 (b), 2011 (c), and 2012 (d). Numerical back-trajectories were initialized from in situ eggs and larvae concentration and age data (see text). Maps were generated using GIMP 2.8 (https://gimp.org).
