From: Seascape connectivity of European anchovy in the Central Mediterranean Sea revealed by weighted Lagrangian backtracking and bio-energetic modelling

Figure 4

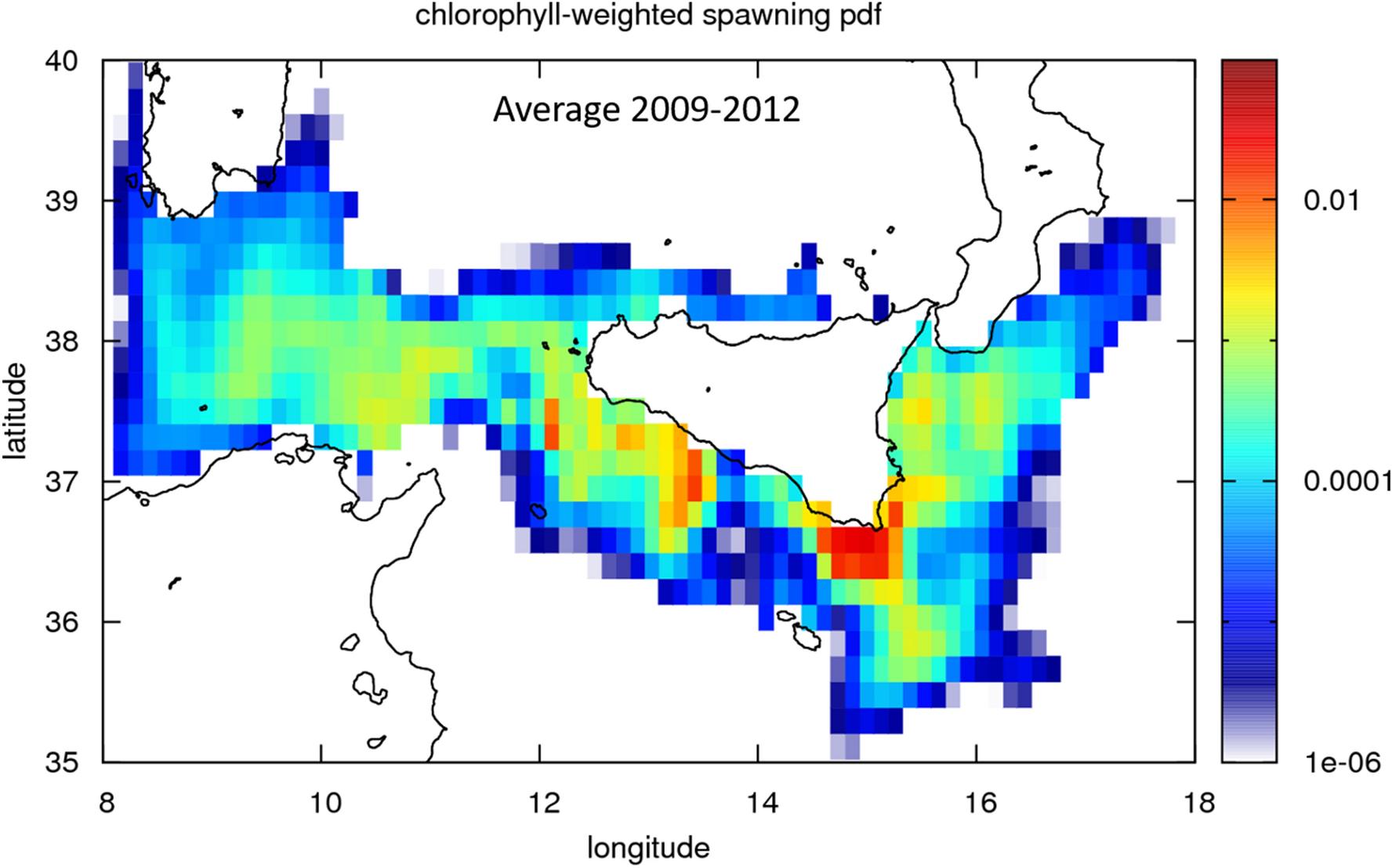

2009–2012 averaged probability distribution function (pdf) of chlorophyll-weighted spawning areas, as reconstructed from back-trajectories of anchovy larvae, collected within the GSA16. Numerical back-trajectories for each year were initialized from in situ eggs and larvae concentration and age data (see text). Map was generated using GIMP 2.8 (https://gimp.org).
