Figure 5 | Scientific Reports

Figure 5

From: A cell-based bioluminescence assay reveals dose-dependent and contextual repression of AP-1-driven gene expression by BACH2

Figure 5

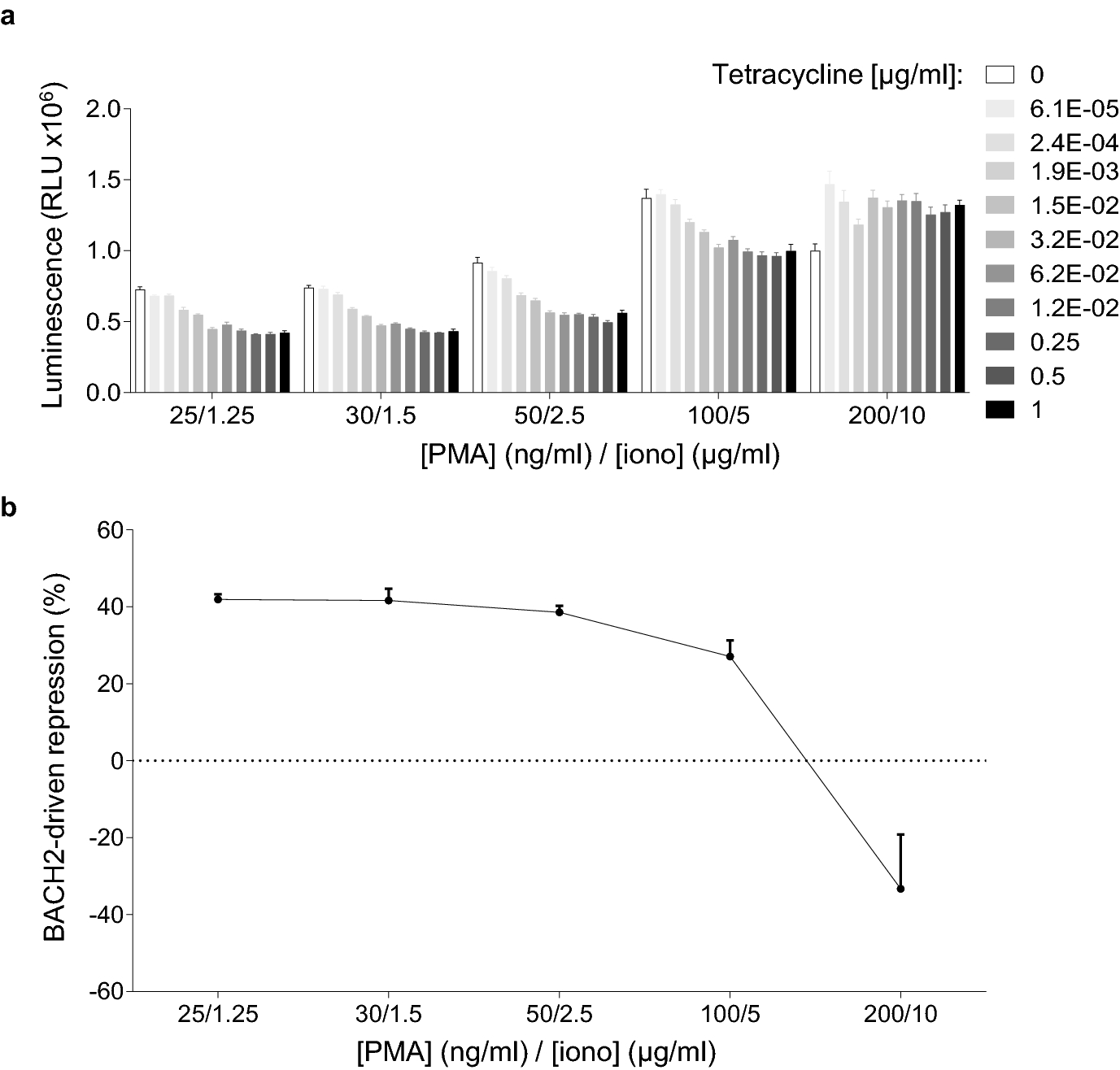

Contextual signal-responsive repression of luciferase expression by BACH2. (a) Luciferase activity in inducible-BACH2 reporter line after 6 h stimulation with the indicated concentrations of PMA/ionomycin, with or without pre-treatment with titrated tetracycline doses. Concentrations of tetracycline are indicated in the figure legend. (b) Luciferase signal repression at the indicated PMA/ionomycin concentrations with or without tetracycline (1 μg/ml) pre-treatment. (a, b) Data are representative of 2 independently repeated experiments with 3 culture replicates per condition. Bars and error represent mean (SD).
