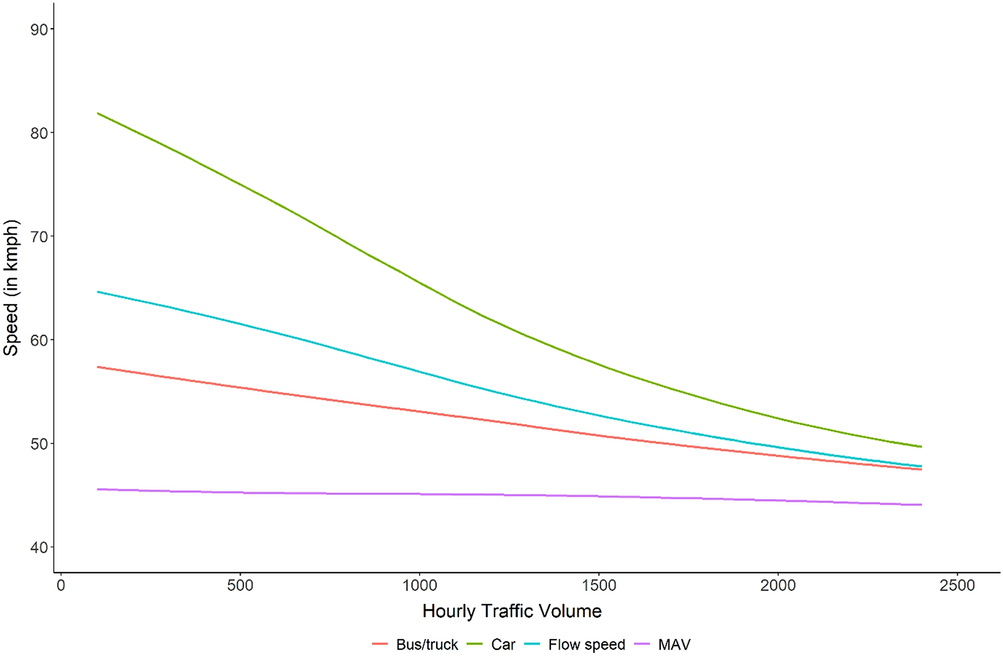

Figure 3

Simulated average harmonic traffic flow speed of present heterogeneity H₀ (blue curve) on NH 44 at different traffic volumes, and free flow speeds of different traffic components viz., car (green), Bus/truck (red) and MAV (purple) in the same simulation. Figure created using R⁴⁵ version 3.6 (https://www.rstudio.com/).
