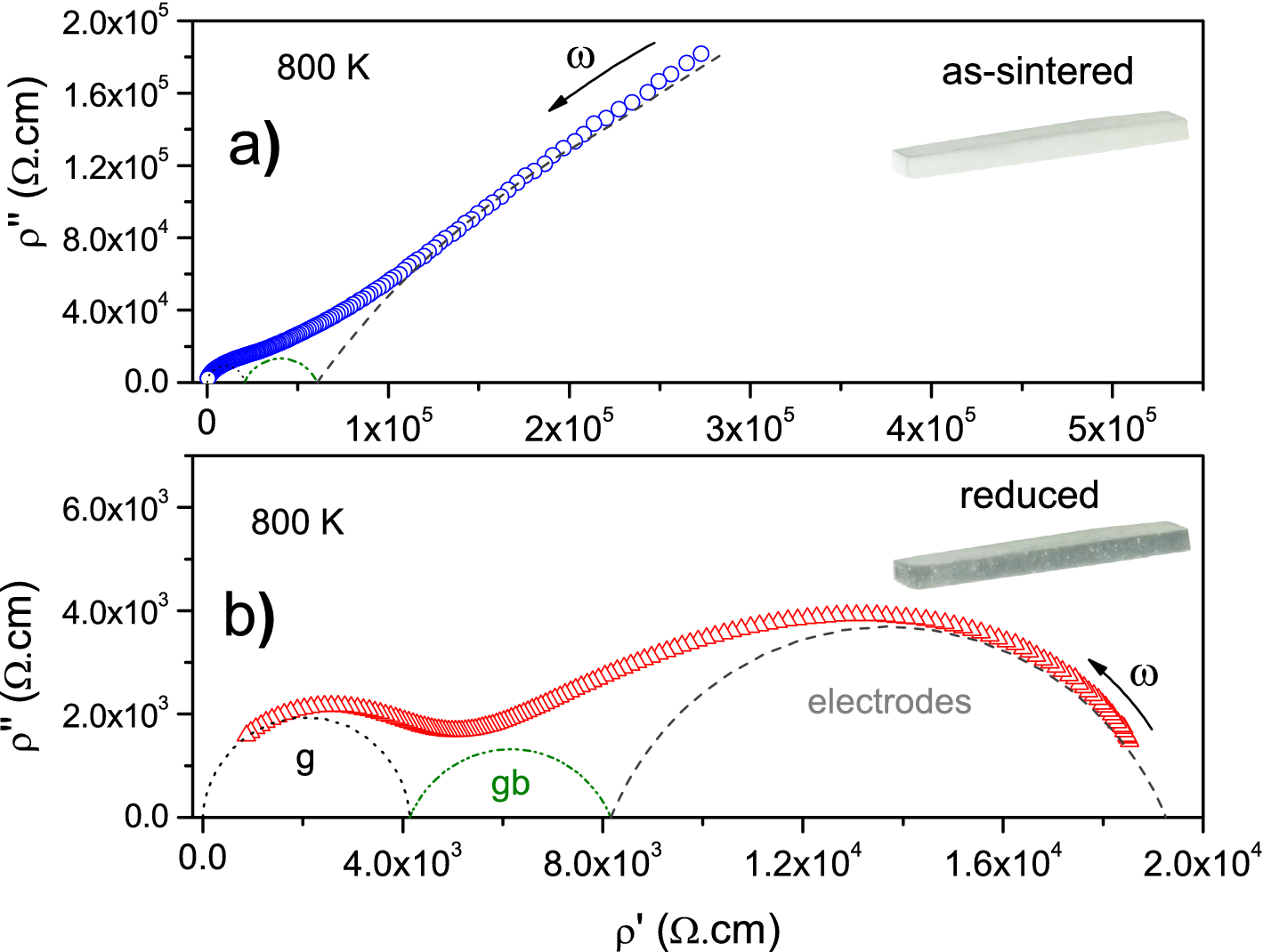

Figure 3
Complex impedance spectra (converted to resistivity), \(\rho ''\) versus \(\rho '\), measured in (a) as-sintered and (b) reduced BNT at 800 K. In both figure insets, each BNT sample is shown with its final appearance after sintering or reduction, the latter revealing to be black-like. Semicircles are the deconvolution of the experimental data by using a parallel resistance–capacitance (R-C) network as equivalent circuit. They were attributed to impedance responses arising from the grains (g), grain boundaries (gb), and material-electrode interfaces (electrodes).
