Figure 6
From: Mito Hacker: a set of tools to enable high-throughput analysis of mitochondrial network morphology

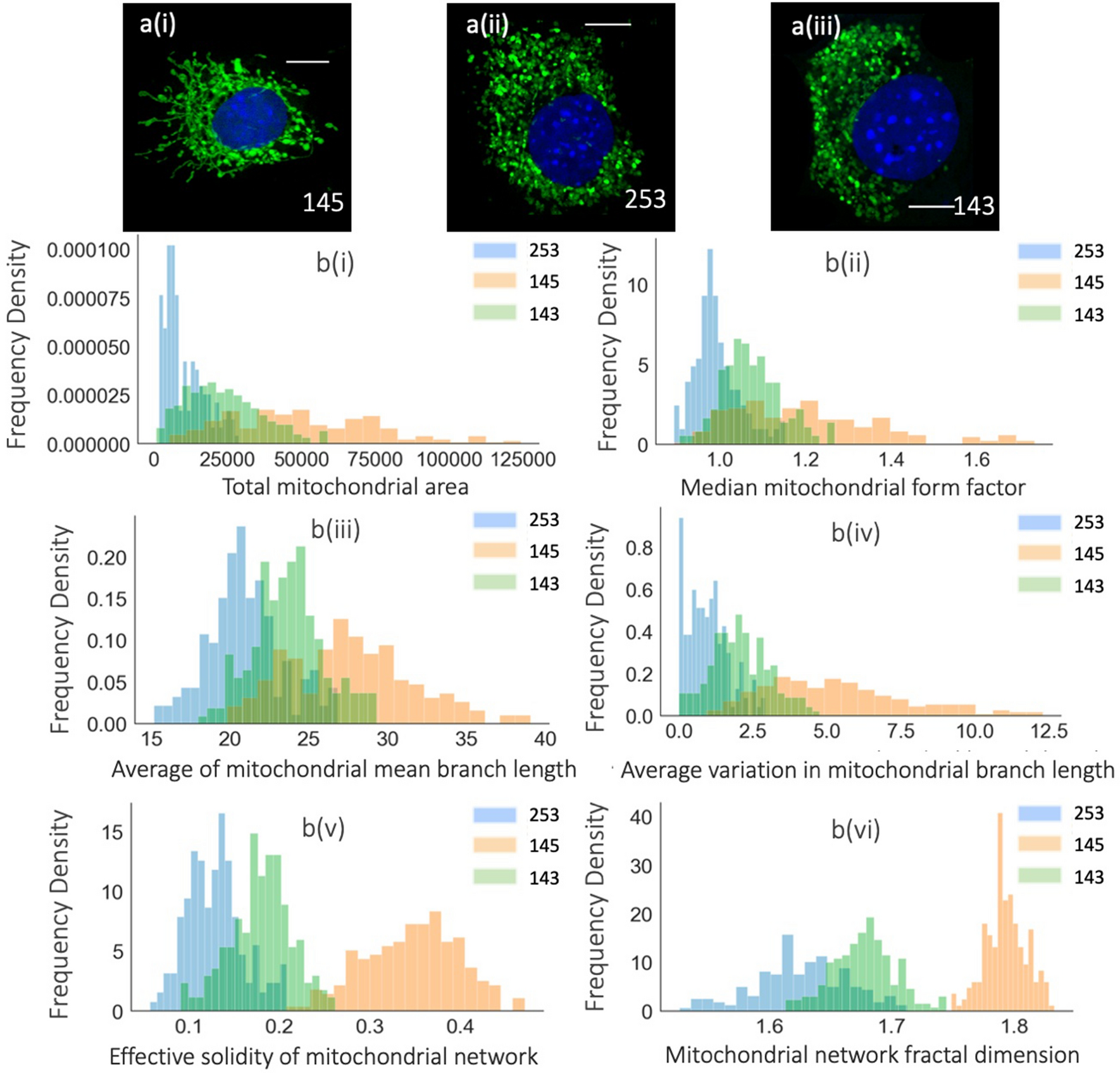

Analysis of Mito Hacker-generated data. (a) Representative images of KPDC145 (Drp1−/−), KPDC253 (Drp1+/+) and KPDC143 (Drp1+/−). Qualitative analysis of mitochondrial morphology indicates that KDPC145 is morphologically distinct from KPDC253 and KPDC143. (b) Distributions of various mitochondrial measurements from > 185 individual cells per cell line; (i, ii) Morphological measurements at the mitochondria level; (iii, iv) Morphological measurements at the sub-mitochondria level (mitochondrial skeleton); (v, vi) Morphological measurements at the cell level. Scale Bars: 10 μm.
