From: Spatial distribution of stygobitic crustacean harpacticoids at the boundaries of groundwater habitat types in Europe

Figure 2

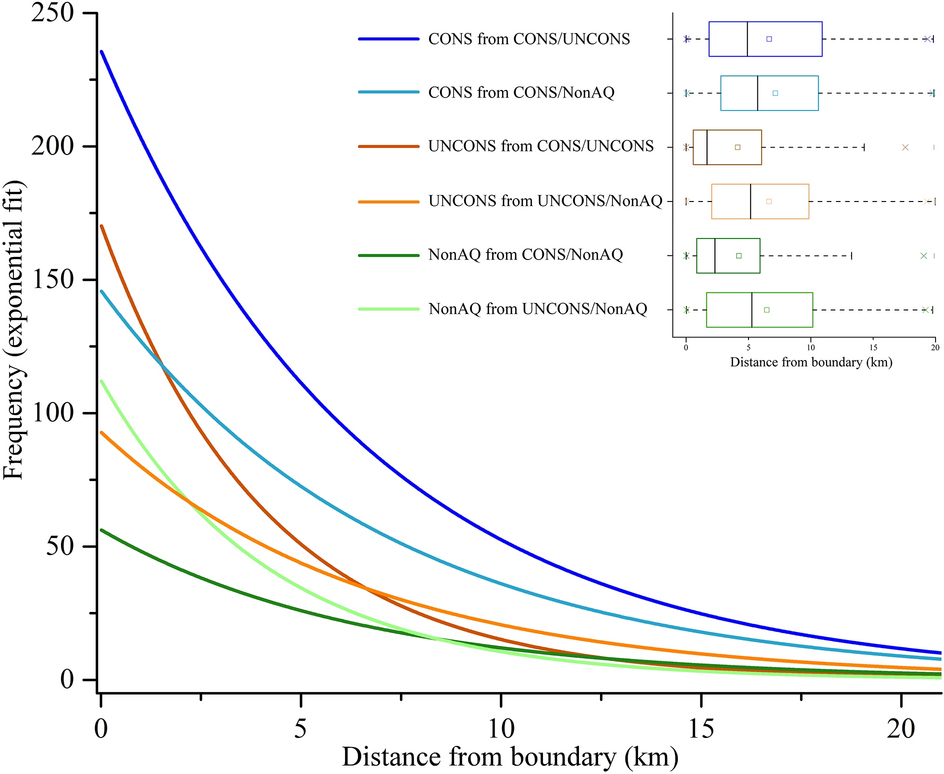

Trends of frequency of occurrences (exponential fit) of the stygobitic harpacticoid copepods at the boundaries between each group of groundwater habitat types; upper right: boxplots of the same set of data, representing median (black line within the boxplot), mean (square), and min/max values (whiskers) (CONS aquifers in consolidated rocks, UNCONS aquifers in unconsolidated sediments, NonAQ practically non-aquiferous rocks).
