Figure 1
From: Microscale diamond protection for a ZnO coated fiber optic sensor

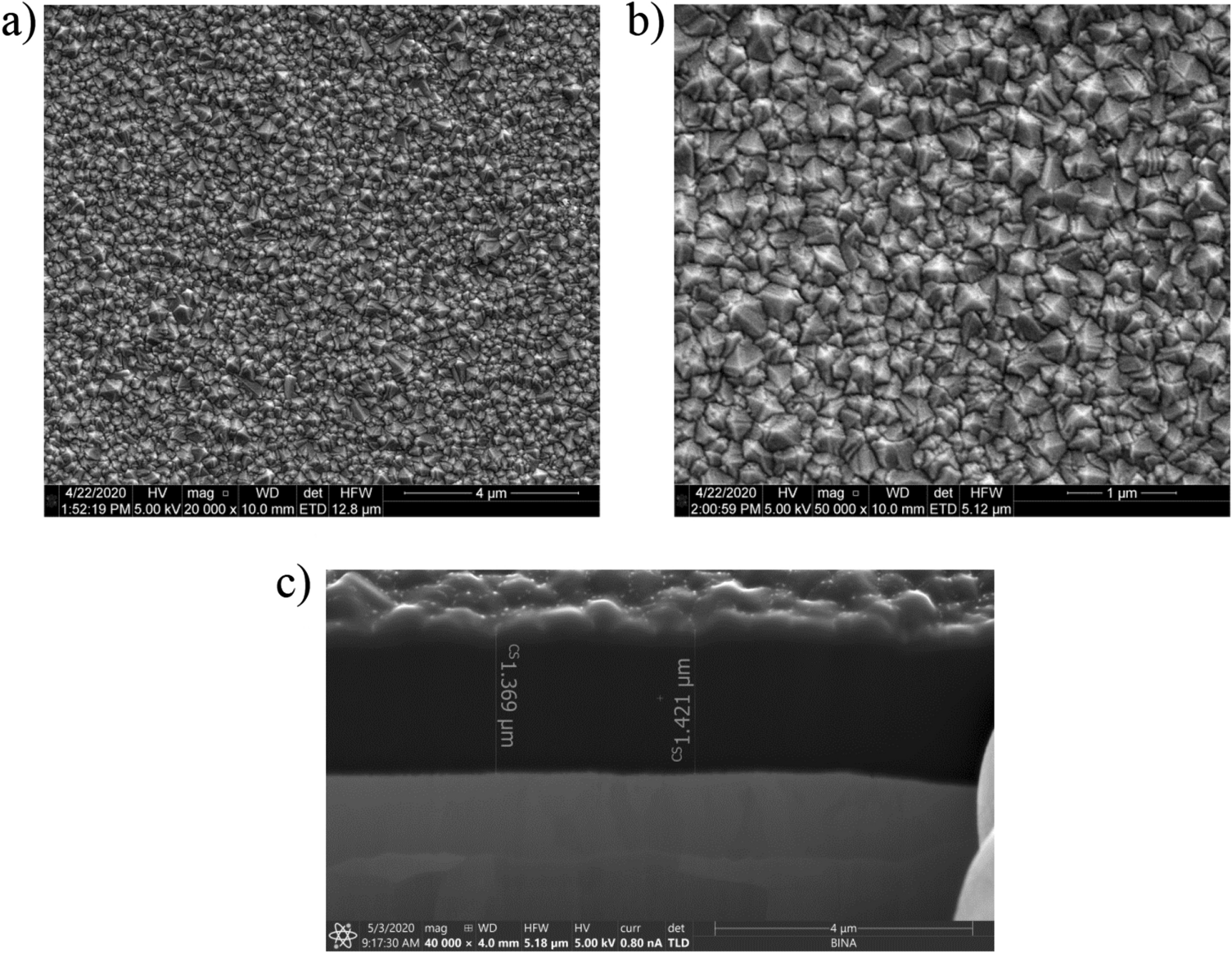

SEM images of nanocrystalline diamond sheet (a) magnification 20,000× (b) magnification 50,000× (c) cross-section magnification 40,000×.
Figure 1 | Scientific Reports
From: Microscale diamond protection for a ZnO coated fiber optic sensor
SEM images of nanocrystalline diamond sheet (a) magnification 20,000× (b) magnification 50,000× (c) cross-section magnification 40,000×.
