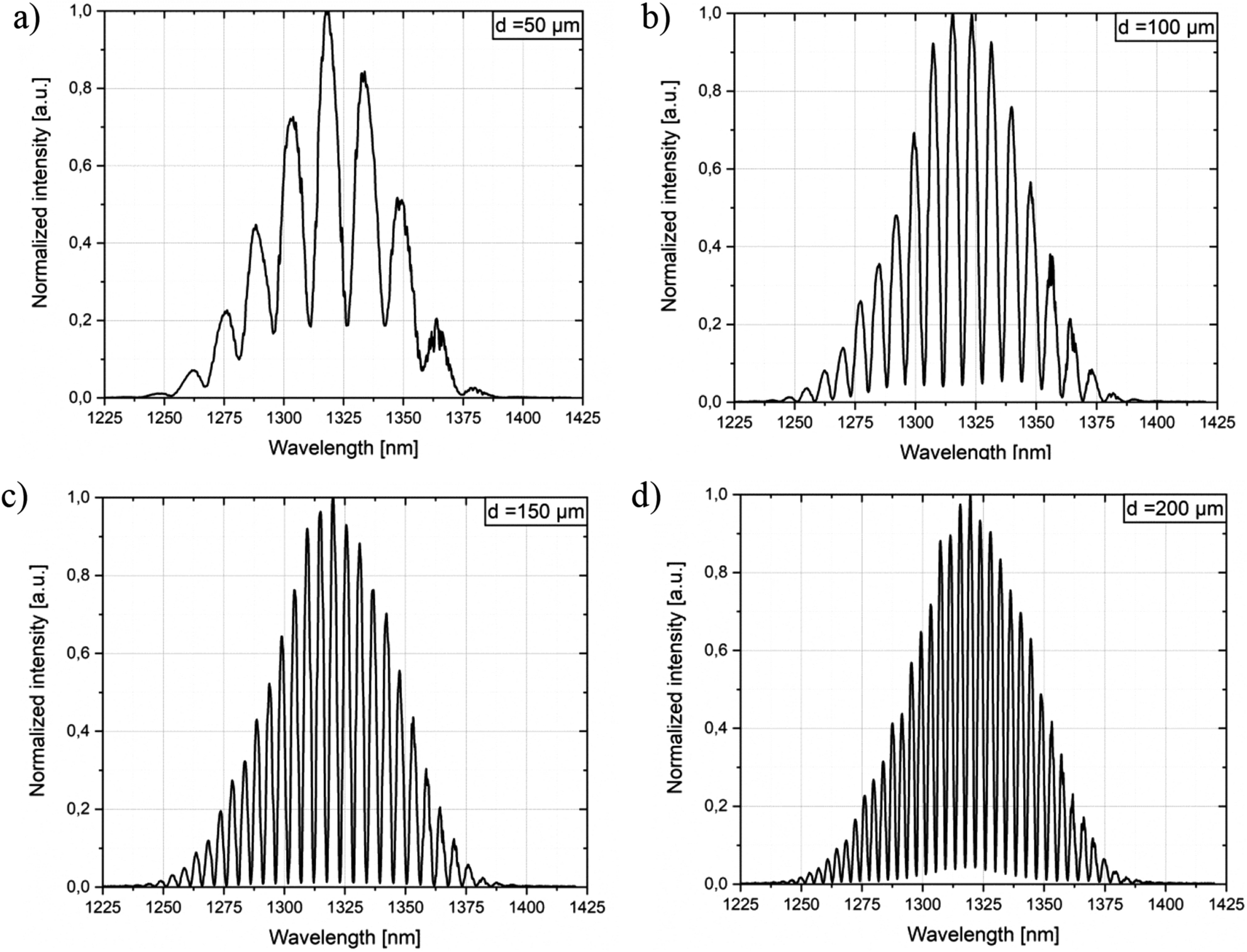

Figure 4
From: Microscale diamond protection for a ZnO coated fiber optic sensor
Signal obtained for the measurement head with ZnO layer and nanocrystalline diamond sheet. The Fabry–Perot cavity length was set to: (a) 50 µm, (b) 100 µm, (c) 150 µm, (d) 200 µm.
