Figure 1

From: Mode locking suppression in a magneto-optical gyro

Figure 1

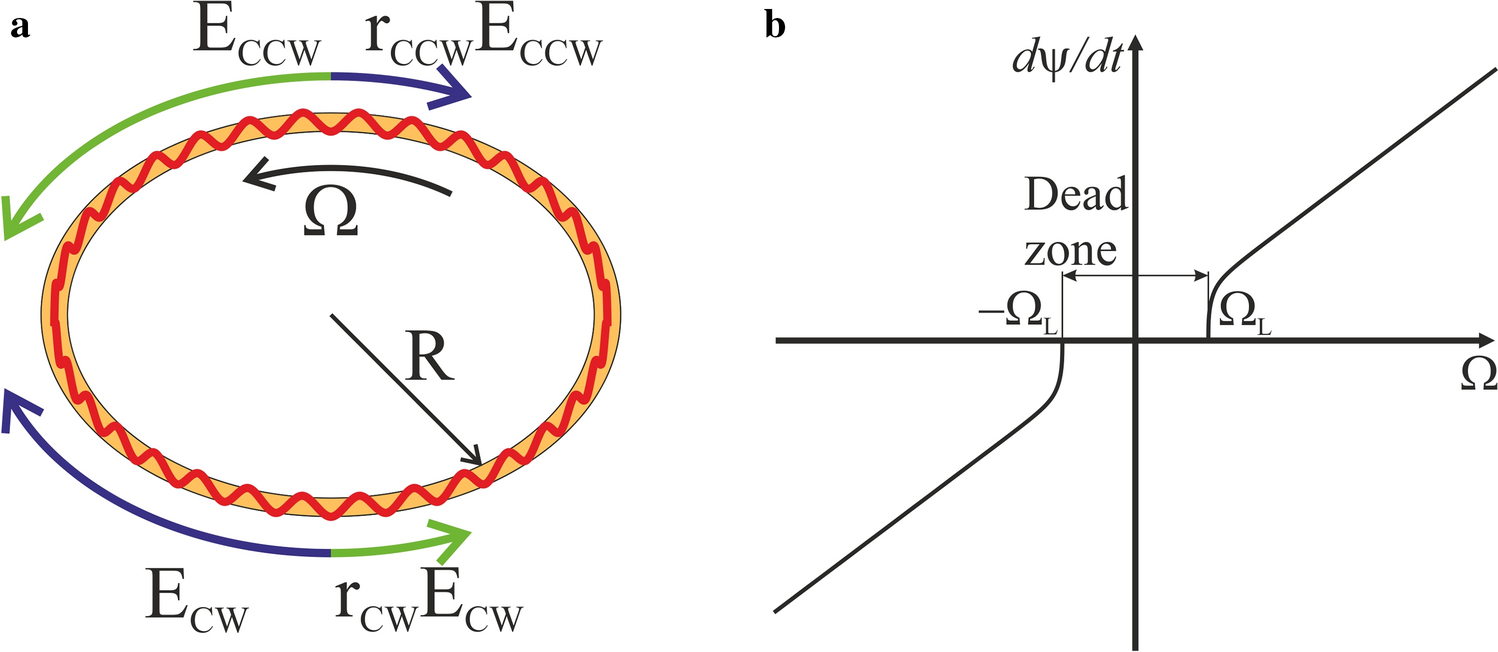

(a) The propagation of CW and CCW waves in a ring resonator. \(E_{CW}\) and \(E_{CCW}\) stand for the wave amplitudes, \(r_{CW}\) and \(r_{CCW}\) are the backscattering coefficients per resonator pass. (b) The typical dependency of gyroscope signal on the angular velocity \(\Omega\).
