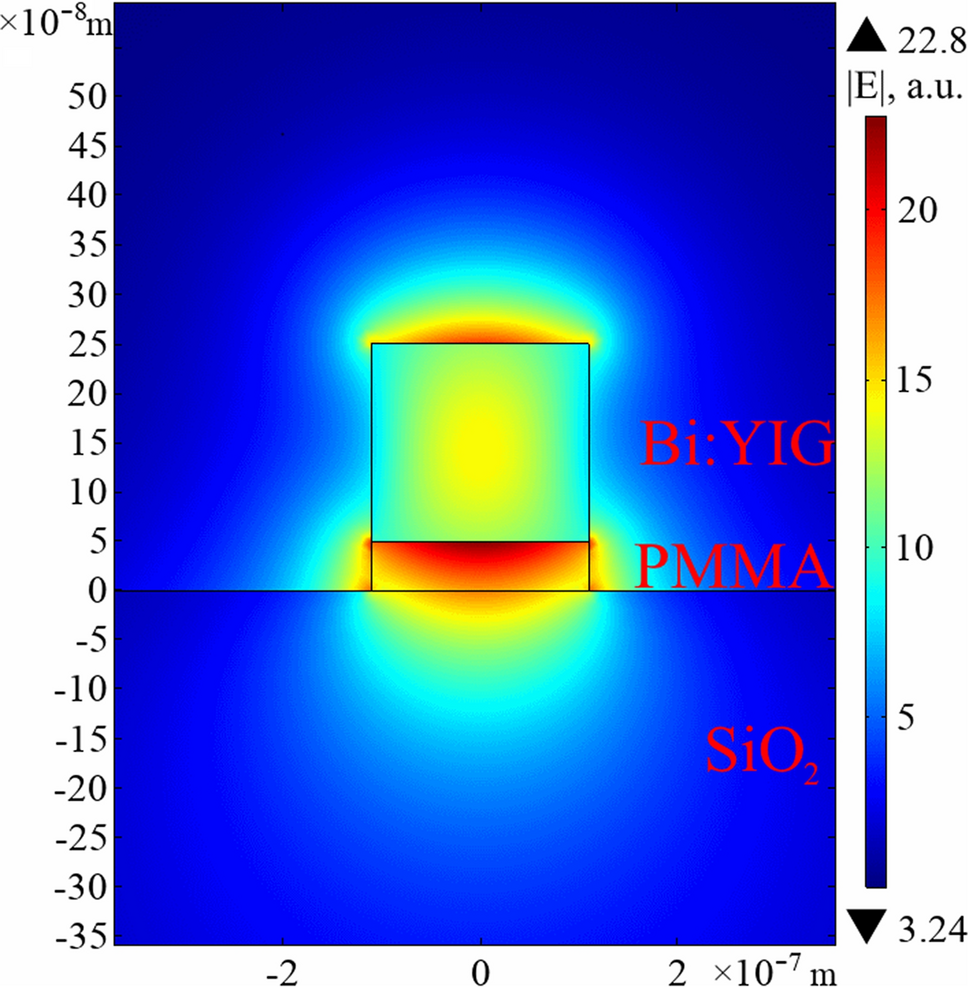

Figure 3
The distribution of the electric field modulus at the cross section of the considered magneto-optical waveguide. The width of the waveguide is 220 nm, the height of the Bi:YIG layer is 200 nm, the height of PMMA layer is 50 nm. The wavelength is 800 nm.
