From: Numerical study of the effect of channel aspect ratio on particle focusing in acoustophoretic devices

Figure 7

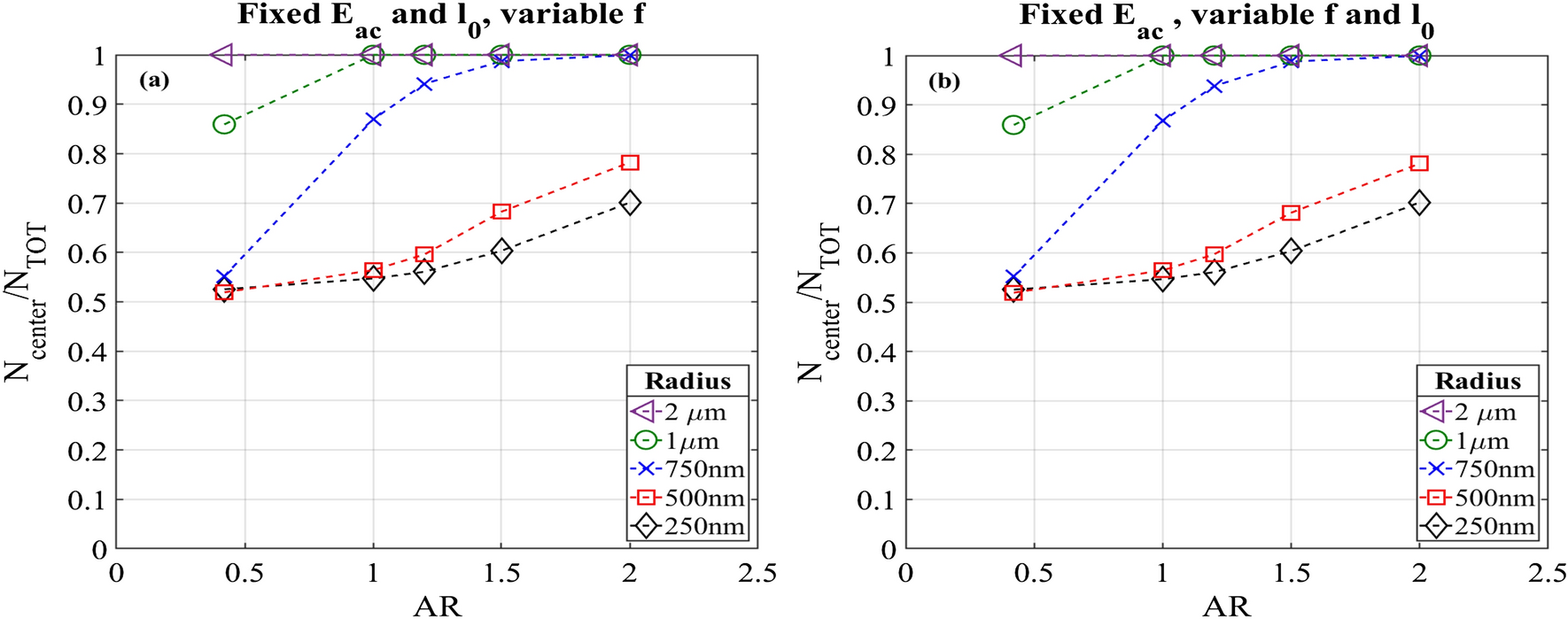

Fractions of particles in the central subdomain, compared to the total number released, as function of their radius. These results are recorded a t = 16 s after particles release. (a) The frequency was set to obtain an acoustic energy density of 106 Pa. (b) The frequency was changed for each AR to the resonance value and the displacement was varied obtaining an acoustic energy density constant.
