Figure 6

From: A cyclical deep learning based framework for simultaneous inverse and forward design of nanophotonic metasurfaces

Figure 6

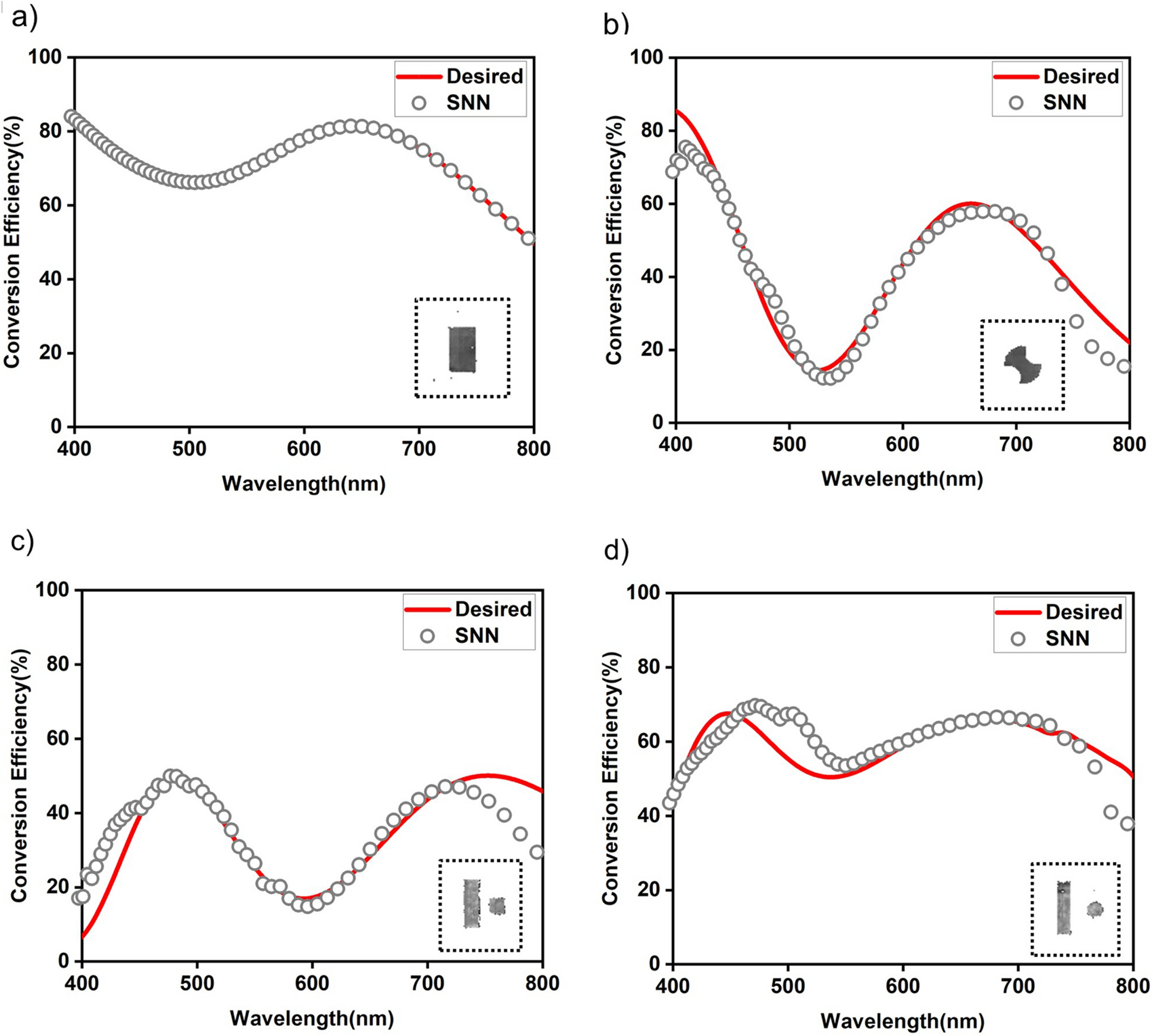

Examples of structural designs generated for the desired optical response as a Gaussian mixture. The optical response (grey circles) predicted by SNN shows good agreement with desired optical response (red curve) for generated designs(insets). (a) rectangle (b) double-arc (c) rectangle-square pair (d) rectangle-circle pair, generated design as different structural design classes.
