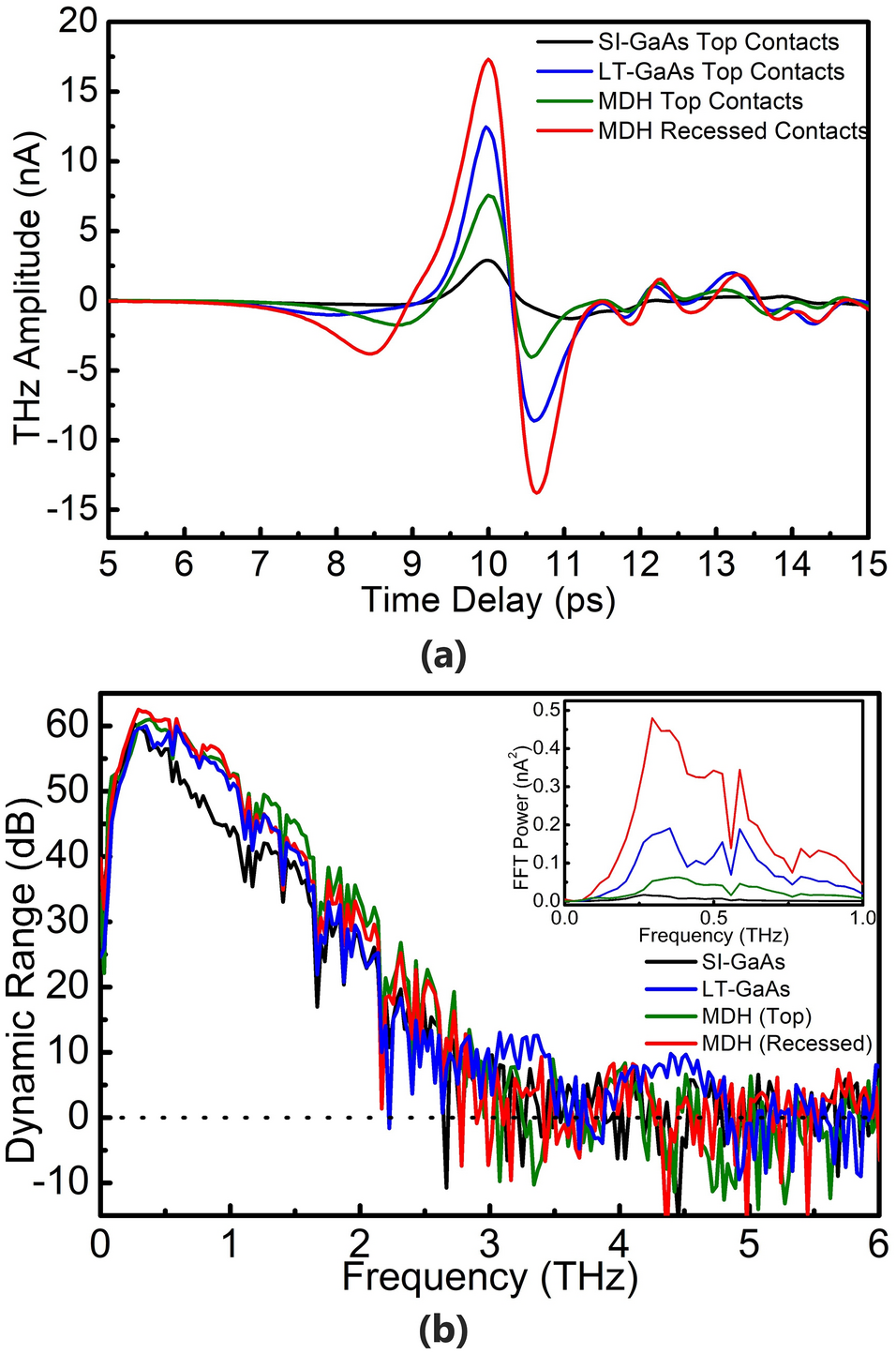

Figure 2

(a) Measured THz-TDS waveforms and (b) the corresponding normalized dynamic range spectra from the photoconductive antennas. Each plot was given a corresponding y-offset in order to align the noise floor average to the y = 0 dB line. The inset in (b) is a plot of the frequency power spectra in linear scale.
