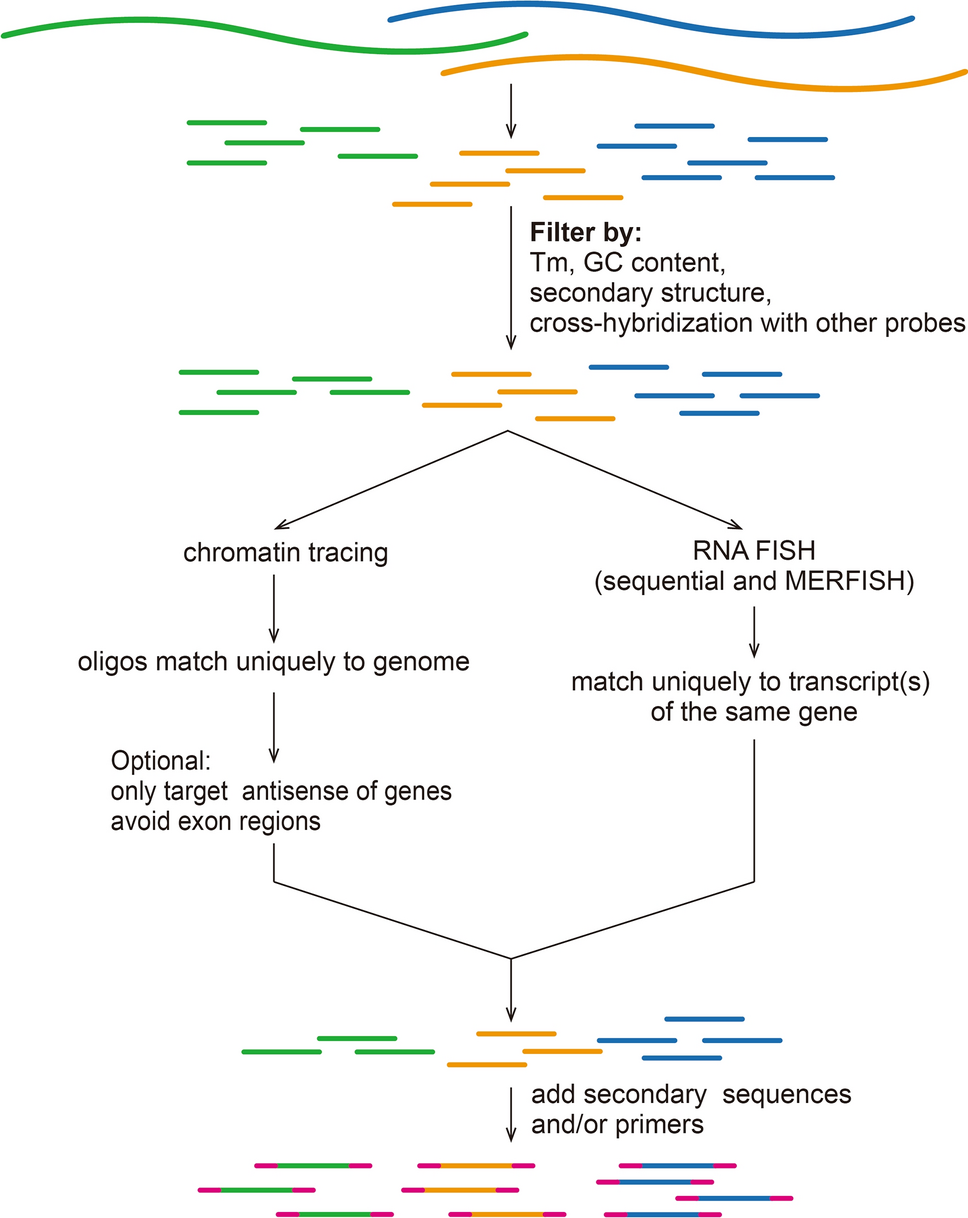

Figure 1

Probe design workflow. ProbeDealer scans input sequences to generate oligos of defined length, and filters the oligos according to their physical properties. ProbeDealer then examines the specificity of these probes, and outputs probes with appended priming regions for probe synthesis and secondary sequences for visualization.
