From: Long-distance airborne dispersal of SARS-CoV-2 in COVID-19 wards

Figure 1

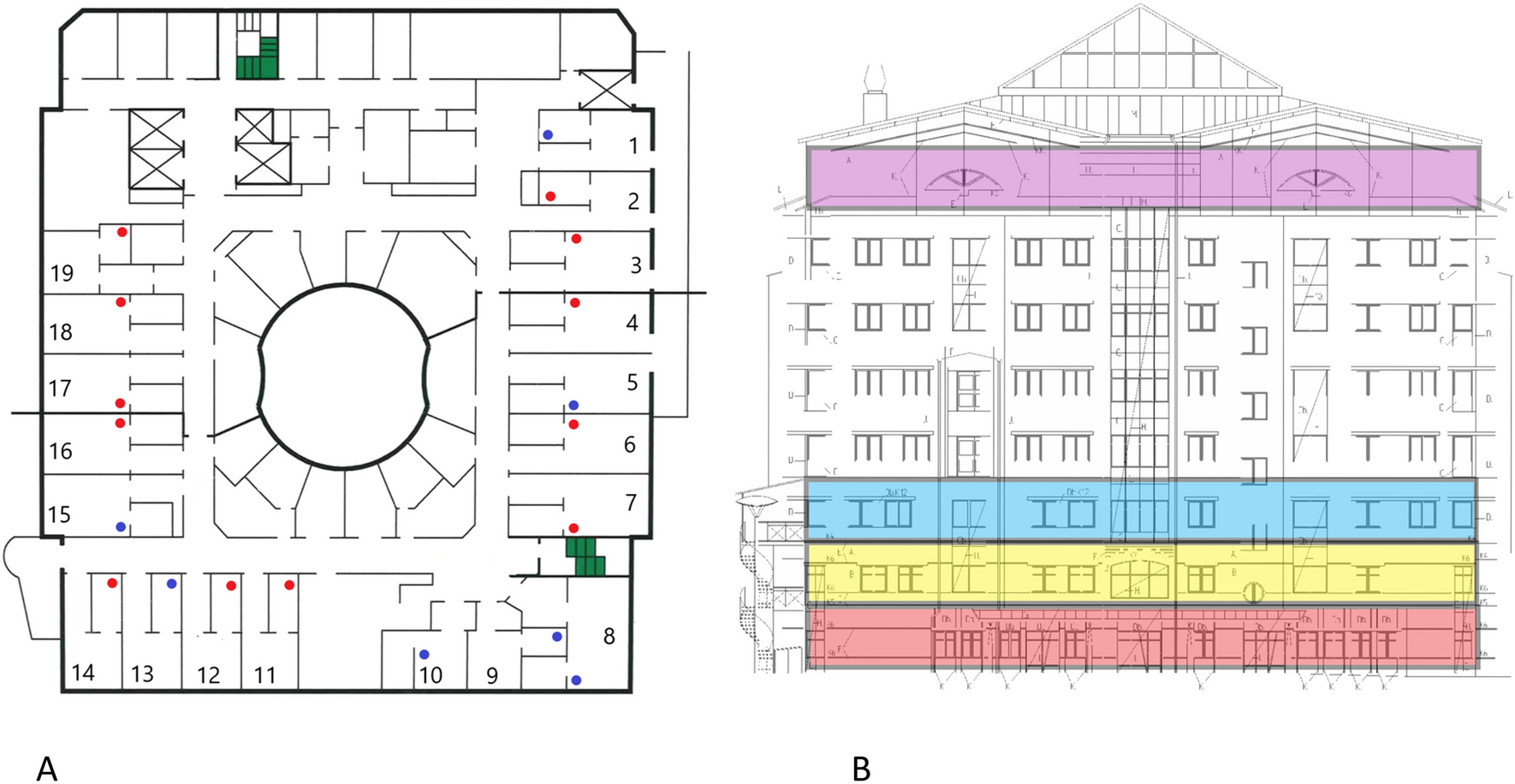

(A) Overview of the 19 investigated COVID-19 ward rooms (ward 1). Dots indicate approximate placing of ceiling vent openings. Red dots indicate openings that where SARS-CoV-2 RNA was detected in at least one of two samplings, blue dots openings negative in both samplings. (B) Lateral view of the hospital building. Ward levels: red; COVID-19 outpatient clinic, yellow and blue; COVID-19 wards 1 and 2, with 19 rooms each, purple; eighth floor with central ventilation fans and HEPA filters. Individual ceiling vent openings were investigated on the second-floor ward (yellow) seen in (A).
