Figure 2 | Scientific Reports

Figure 2

From: Fungus-originated genes in the genomes of cereal and pasture grasses acquired through ancient lateral transfer

Figure 2

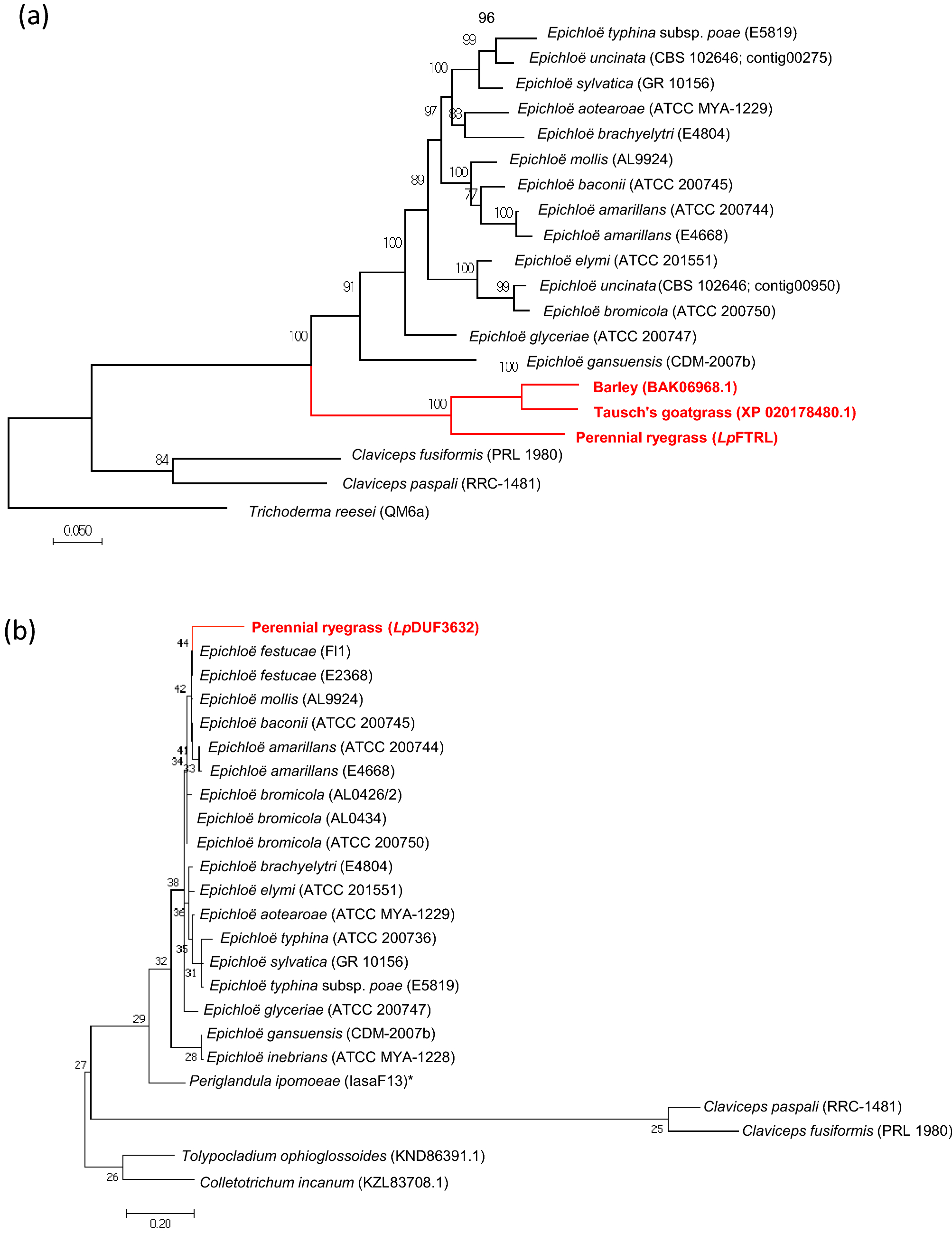

Phylogenetic tree of Epichloë-Triticeae/Poeae HGT candidates and corresponding fungal genes. The phylograms for LpFTRL (a) and LpDUF3632 (b) generated based on predicted amino acid sequences. Sequences from plant species are shown in red. For LpFTRL, the sequence from Trichoderma was selected as an outer group to obtain a root of the phylogenic tree (a). For LpDUF3632, amino acid sequences from Tolypocladium and Colletotrichum were selected as an outer group. A DUF3632-like gene was found from Periglandula ipomoeae, which is shown with an asterisk(*) (b). For fungus sequences, strain and sequence identifiers of the Genome Project at the University of Kentucky are shown in brackets. For plant sequences, NCBI GenBank UI is shown in brackets.
