Figure 5 | Scientific Reports

Figure 5

From: Fungus-originated genes in the genomes of cereal and pasture grasses acquired through ancient lateral transfer

Figure 5

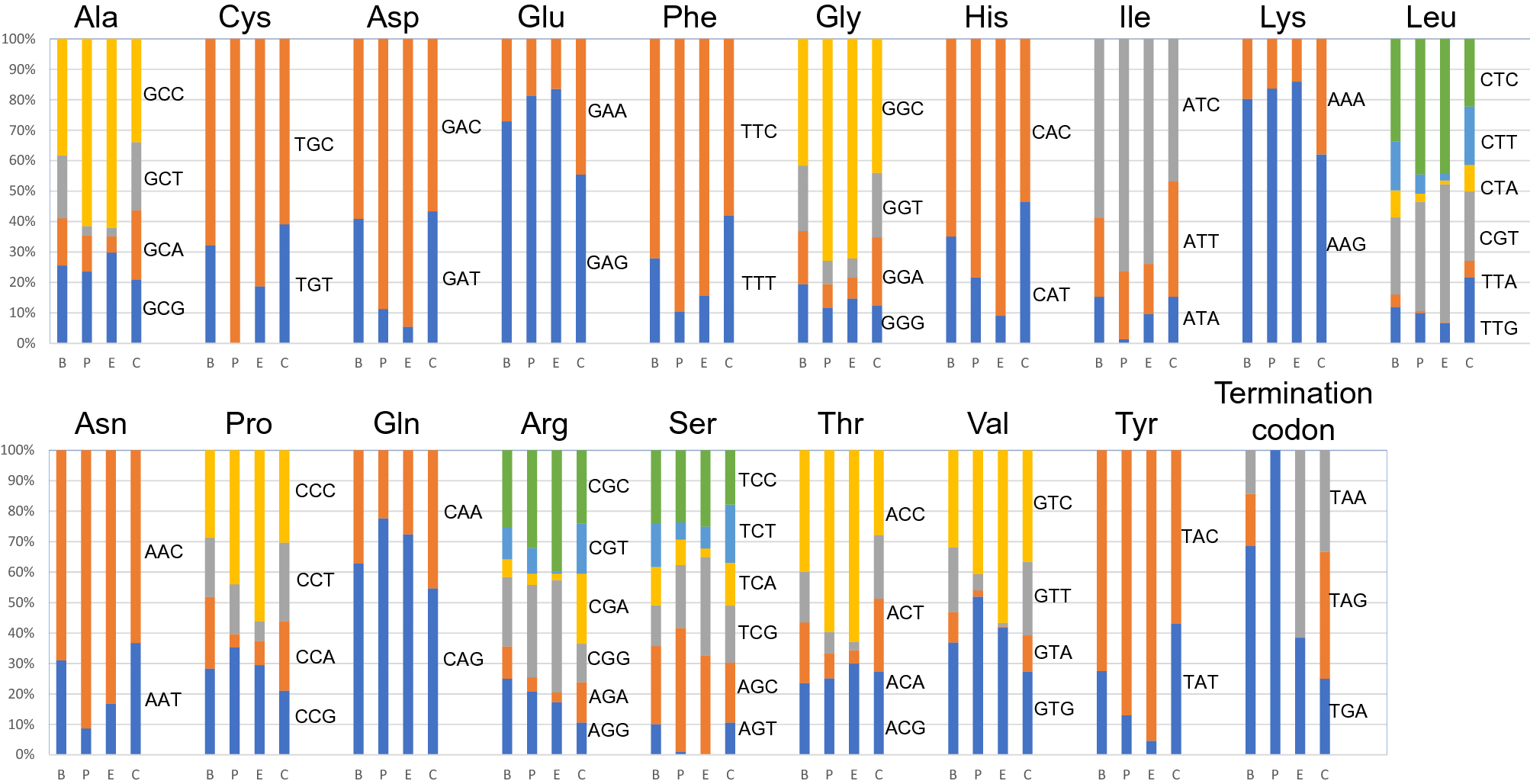

Visualised codon usage ratio for 18 amino acids and the termination signal. The y-axis shows the ratio, and ‘B’, ‘P’, ‘E’, and ‘C’ on the x-axis denote for codon usages in ‘barley (Hordeum vulgare subsp. vulgare) 1,490 coding sequences (CDSs)’, ‘plant FTRL genes’, ‘Epichloë FTRL genes’, and ‘Claviceps purpurea 37 CDSs’, respectively. Each color (dark blue, orange, grey, yellow, light blue or green) represents the ratio of each codon, of which DNA sequence is shown on the right side of data from the C. purpurea 37 CDSs. The usage information of barley and C. purpurea CDSs was obtained from the Codon Usage Database (https://www.kazusa.or.jp/codon/), and shown in the figure as codon usage reference in plant and fungal species.
