Figure 7

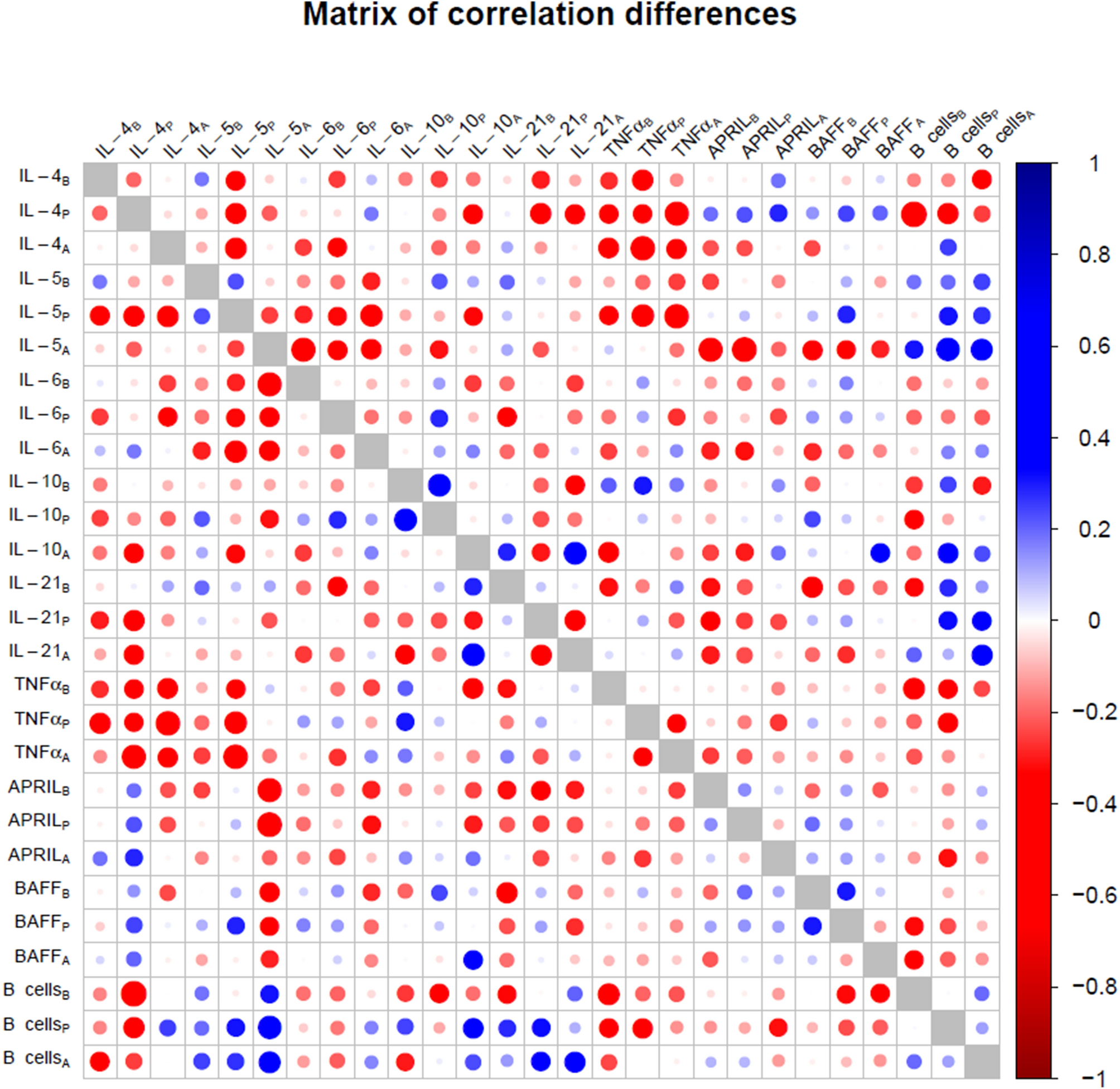

Difference between the correlation matrices of the EBV+ group and the control group. The absolute value difference between the correlations is represented by circle size. Blue tones denote that the EBV+ group had an increased correlation compared to the control group and vice versa for the red tones. Subscripts in variable labels denote the time point of measurement (B: before, P: peak, A: after).
