Figure 1 | Scientific Reports

Figure 1

From: Construction of an artificial system for ambrein biosynthesis and investigation of some biological activities of ambrein

Figure 1

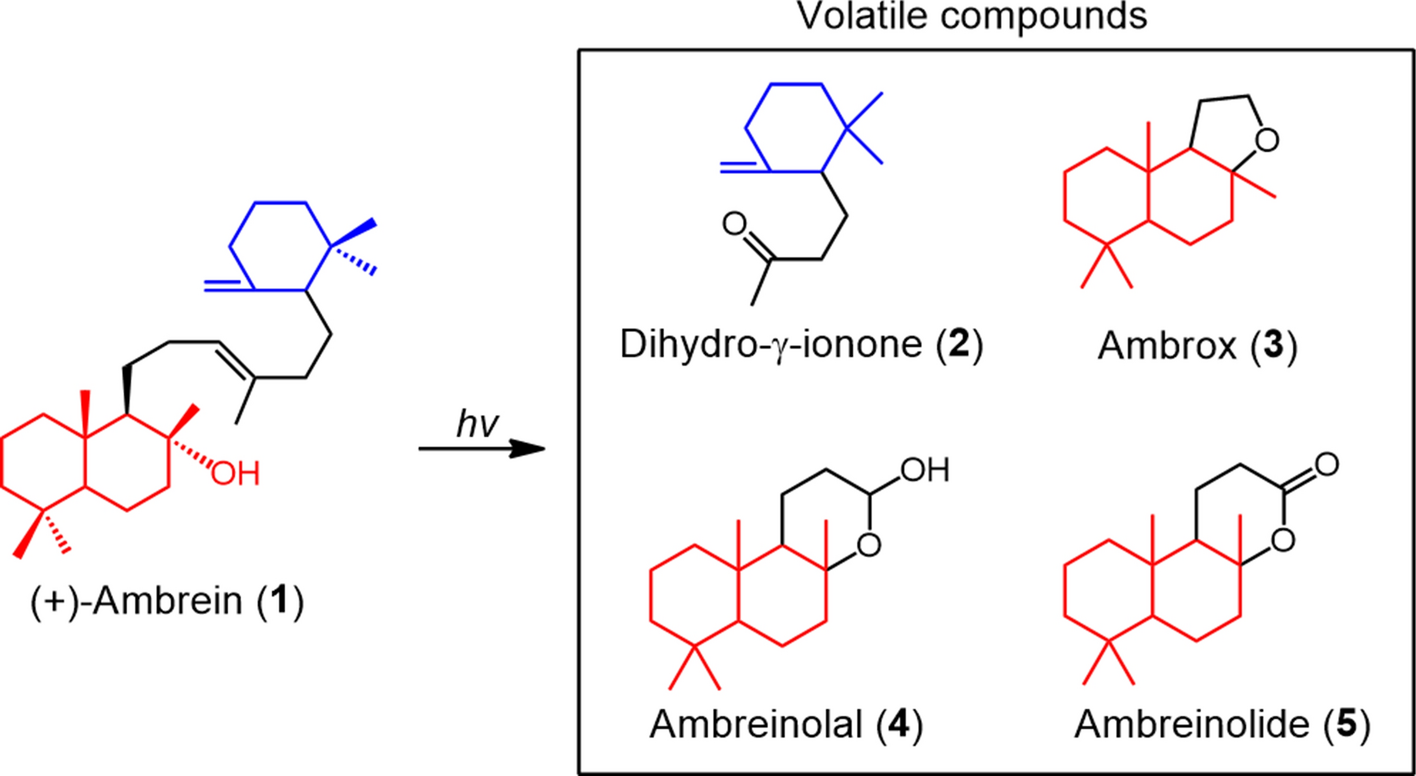

Photooxygenation of 1 to produce volatile compounds (25). Tricyclic triterpene, (+)-ambrein (1), is the primary source of ambergris-derived odor components2,3,4,9,10,11. Photooxidative degradation of 1 by1O2 around its central double bond produces volatile compounds with smaller molecular weights2,3,4,9,10,11. 2-5 are the main components identified. Tricyclic volatiles 35 originate from the bicyclic part of 1, while the smaller fragment 2 is related to the monocyclic part of 12,3,4,9,10,11.
