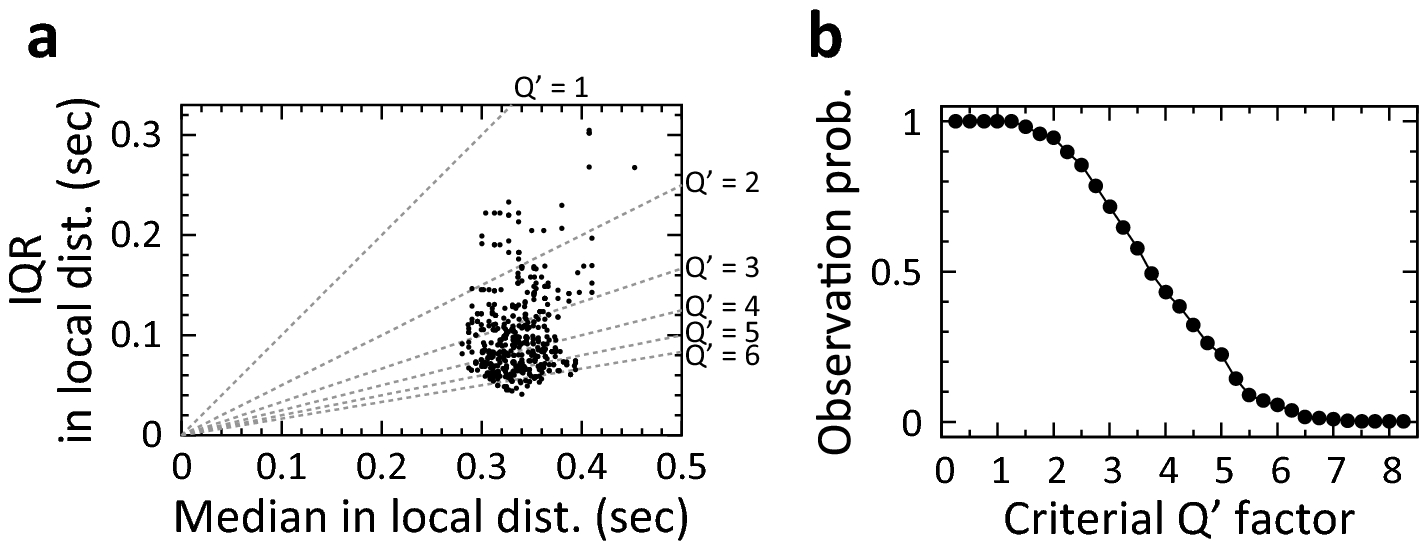

Figure 4
From: Dynamic changes of timing precision in timed actions during a behavioural task in guinea pigs
Calculation of the probability of observing a local distribution in which local Qʹ factor exceeds a local Qʹ factor threshold in a daily session. (a) Scatter plot of median and interquartile range (IQR) measured in each local distribution of action times in the same ‘short’ trials on Day 15 shown in Fig. 2a. The dashed line indicates median and IQR to be the local Qʹ factor. (b) Probabilities to observe a local distribution of which local Qʹ factor exceeds the local Qʹ factor threshold in the same daily session are shown in (a). The probability was calculated at 0.25 steps of local Qʹ factor threshold.
