From: Mechanisms of ranolazine pretreatment in preventing ventricular tachyarrhythmias in diabetic db/db mice with acute regional ischemia–reperfusion injury

Figure 2

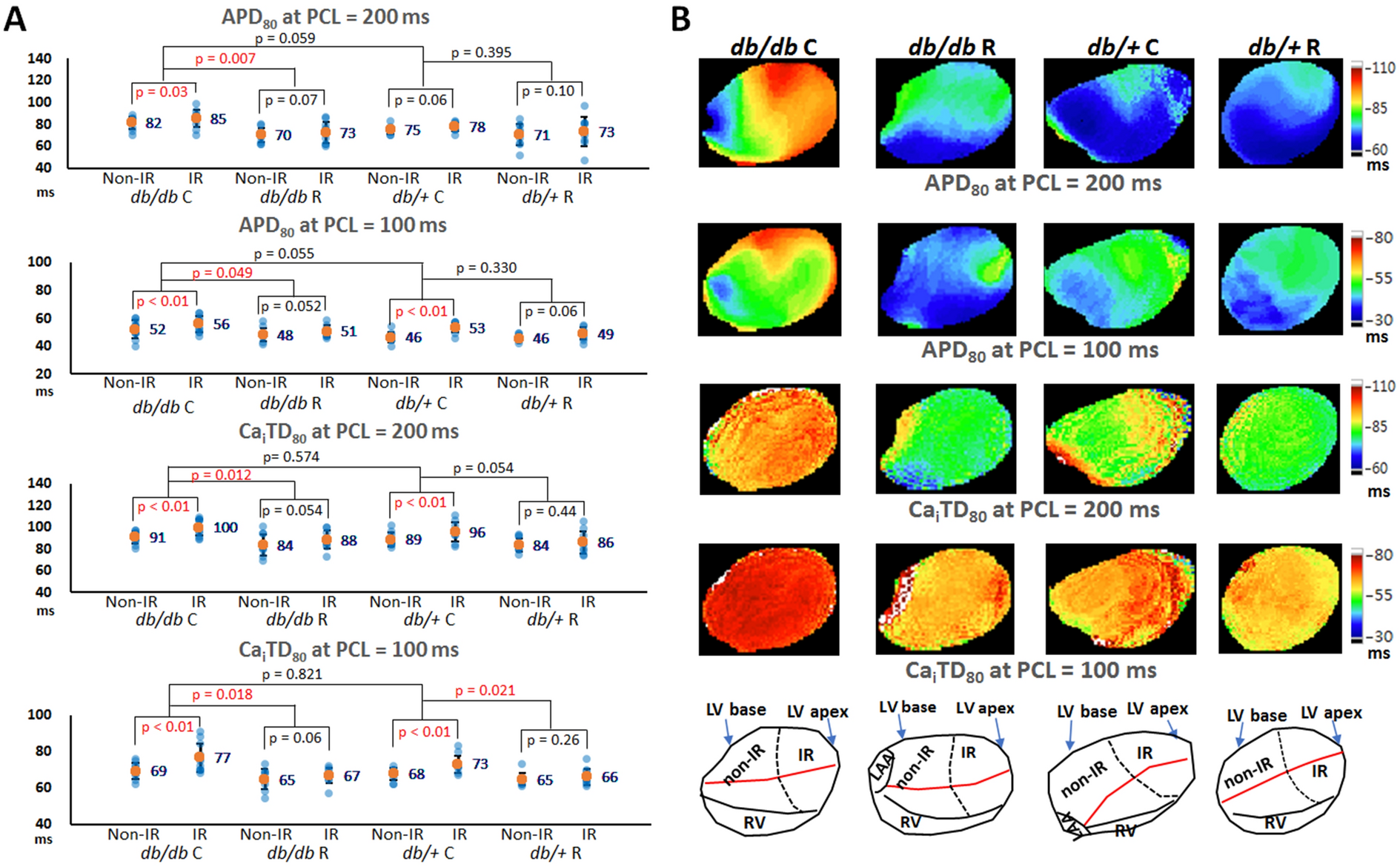

Effects of ranolazine therapy on APD80 and CaiTD80. (A) Scattered graphs of APD80 and CaiTD80 at pacing cycle length (PCL) of 200 ms and 100 ms. Orange dots and numbers indicate the mean values. Ranolazine significantly shortened APD80 and CaiTD80 in db/db mice. (B) Representative APD80 and CaiTD80 maps at pacing cycle length (PCL) = 200 and 100 ms.
