Figure 4
From: New insights into quetiapine metabolism using molecular networking

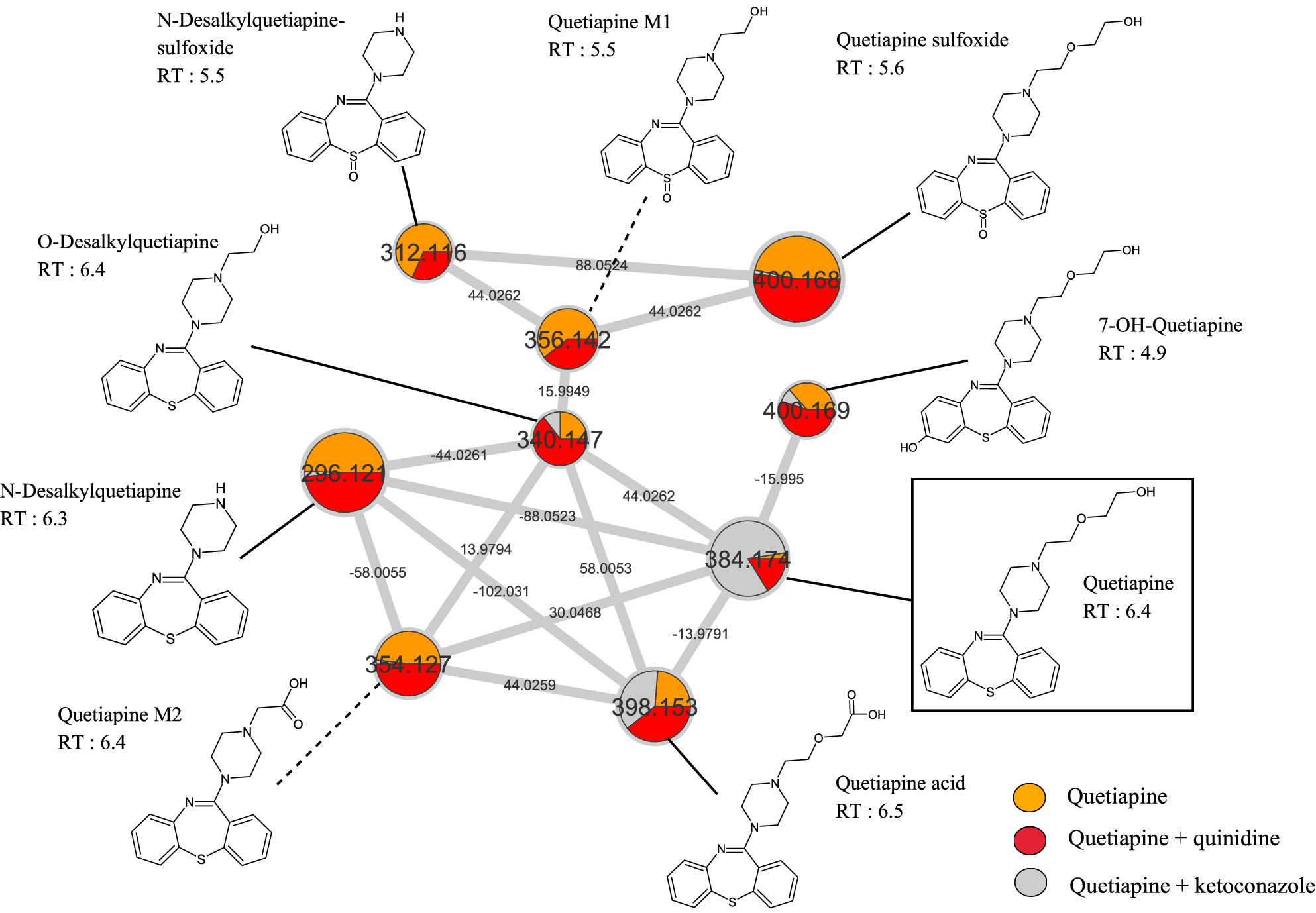

Extinction of CYP3A4/5 and CYP2D6 metabolic pathway visualization in differentiated HepaRG cells using molecular networking. Differentiated HepaRG were incubated with quetiapine (13 µM) during H24 with or without cytochrome inhibitors. Ketoconazole (10 µM) is used as a CYP3A4 inhibitor and quinidine (10 µM) is used as a CYP2D6 inhibitor. Each experimental condition is depicted in a specific color: quetiapine in orange, quetiapine + quinidine in red and quetiapine + ketoconazole in grey. Nodes are labelled with the exact protonated mass (m/z), chemical structures and retention times (RT in minutes) and the links are labelled with the exact mass shift.
