Figure 5
From: Genetic origins and diversity of bushpigs from Madagascar (Potamochoerus larvatus, family Suidae)

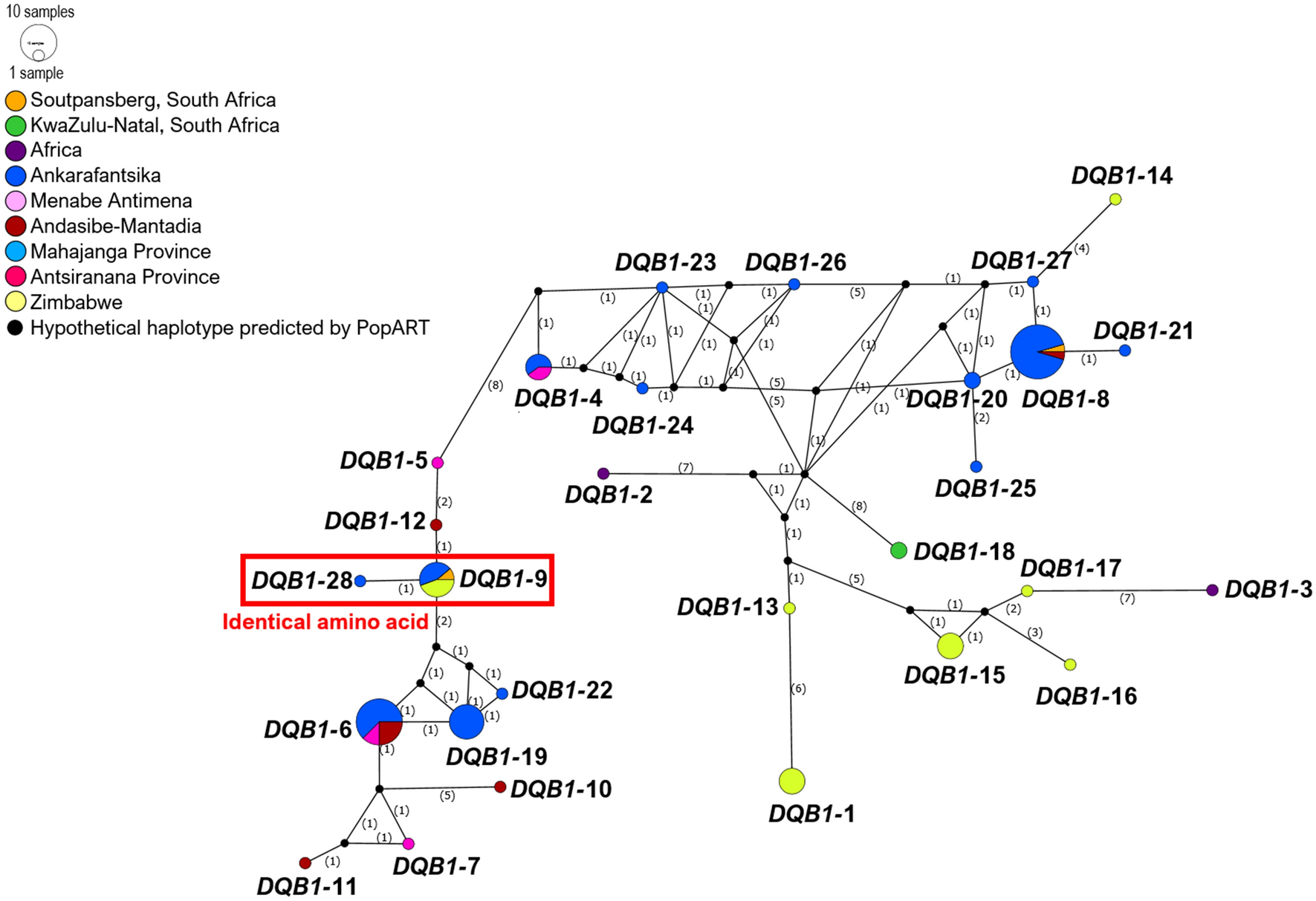

Median joining network of Malagasy bushpigs based on MHC loci SLA-DQB1 exon-2 sequence. Coloured circles represent the haplotypes identified by DnaSP v665 with each colour represented by a location as indicated by the figure key, and the size of the circle is proportional to the frequency of each haplotype. Numbers in parentheses along the branches represents the mutational steps between each haplotype. Haplotypes with the same translated amino acid sequence are outlined.
