Figure 5

From: Embryonic periventricular endothelial cells demonstrate a unique pro-neurodevelopment and anti-inflammatory gene signature

Figure 5

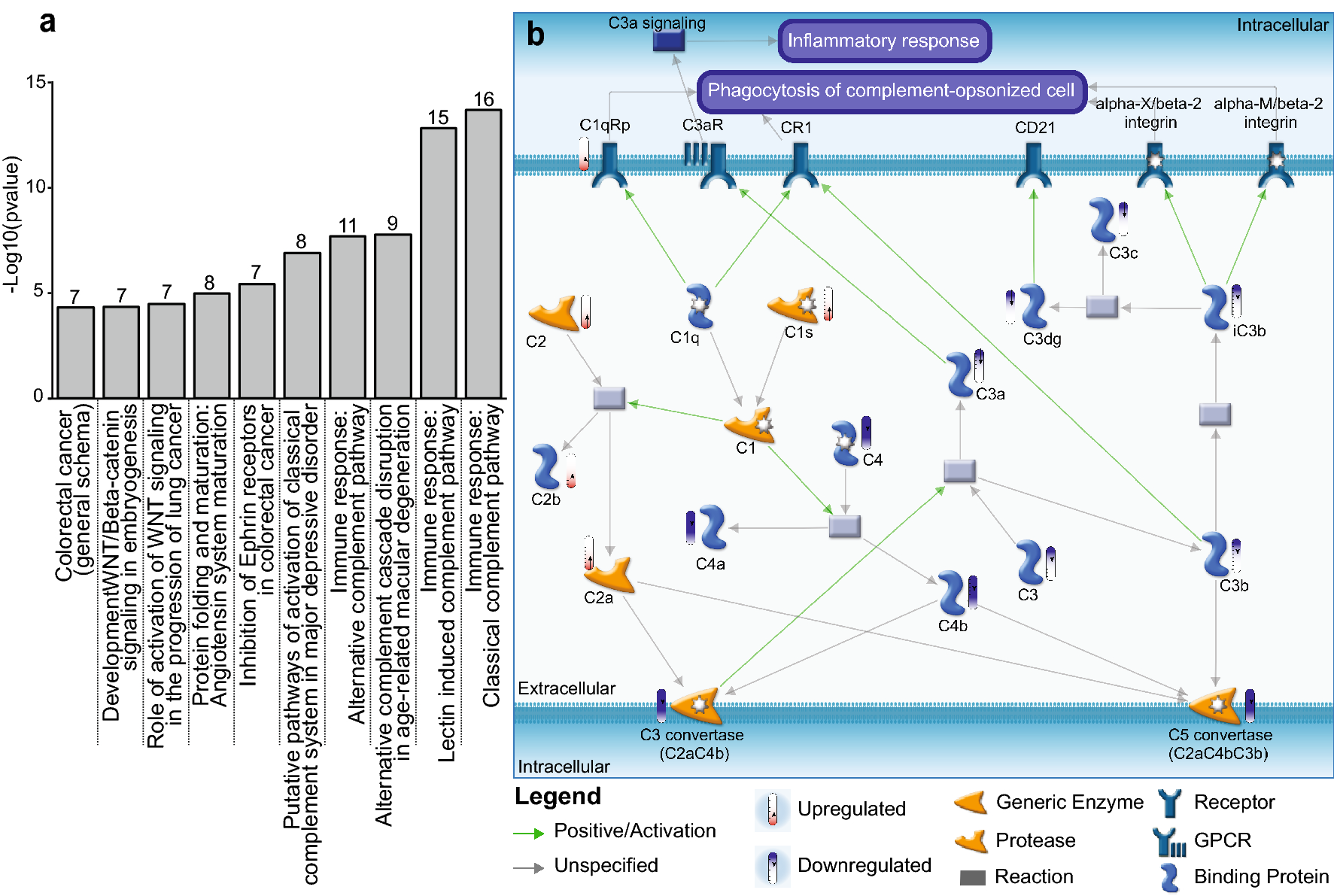

Canonical pathway enrichment analysis identifies immune response classical complement pathway as the ones most enriched in PVEC co-cultured with NPC. (a) Canonical pathway enrichment using the Metacore from Clarivate Analytics identified the top 10 most enriched pathways in PVEC vs. PVEC + NPC. (b) Depiction of the top most modified pathway, “Immune response: Classical complement pathway”. The legend included in the figure decodes the colored shapes and arrows used in the picture. Colored bars close to each protein name indicates whether the DEG was upregulated (red) or down-regulated (blue) upon co-culture of PVEC with NPC.
