Figure 5
From: Imaging atelectrauma in Ventilator-Induced Lung Injury using 4D X-ray microscopy

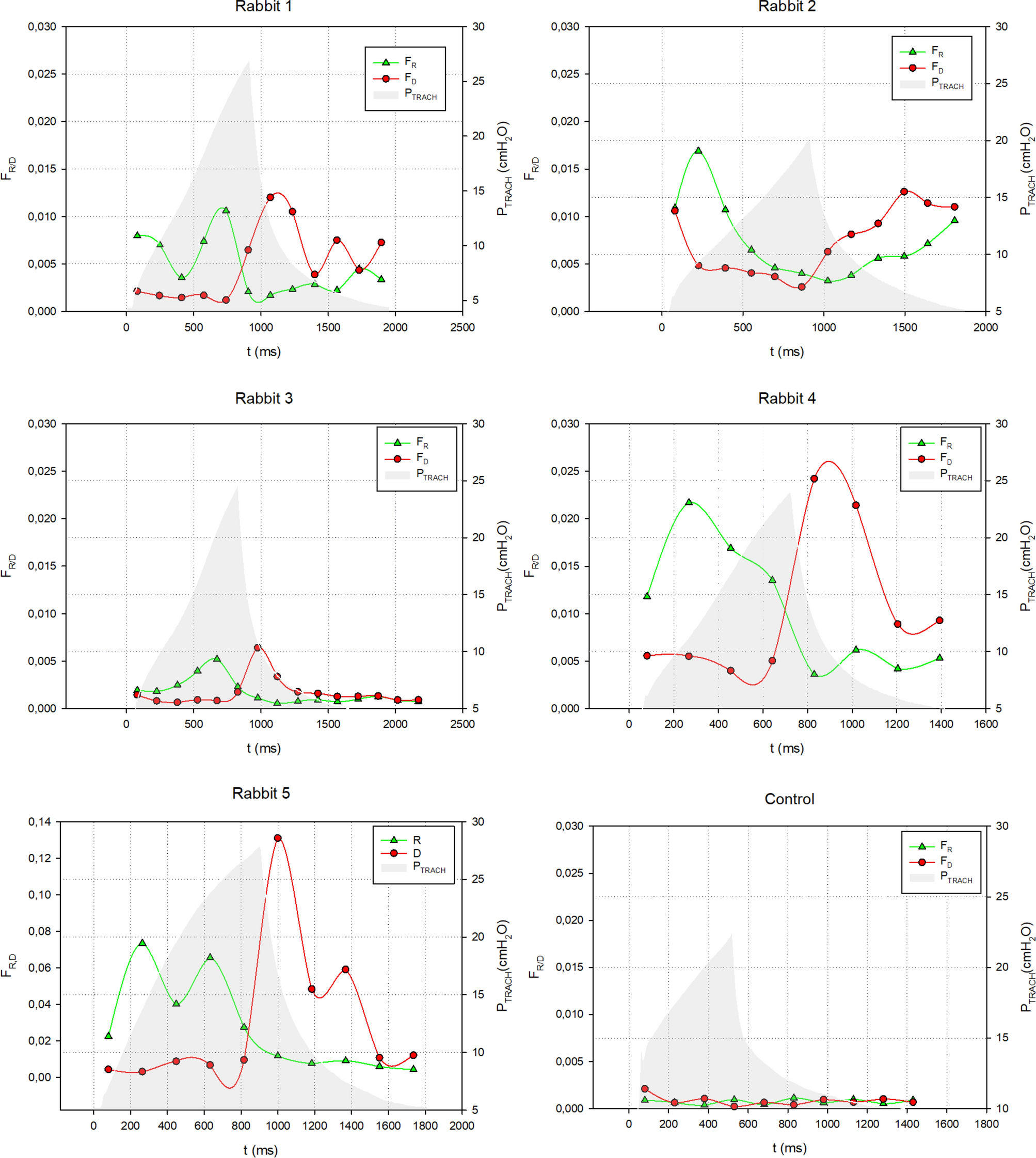

Graphs representing the recruitment (FR) and derecruitment (FD) fraction as a function of time for all the rabbits. The pressure–time curve is shown as a reference. Rabbit-5, having a different injury model, is represented as last graph, with a different scale for the recruitment and derecruitment fraction.
