Figure 1

From: Simultaneous evaluation of antioxidative serum profiles facilitates the diagnostic screening of autism spectrum disorder in under-6-year-old children

Figure 1The alternative text for this image may have been generated using AI.

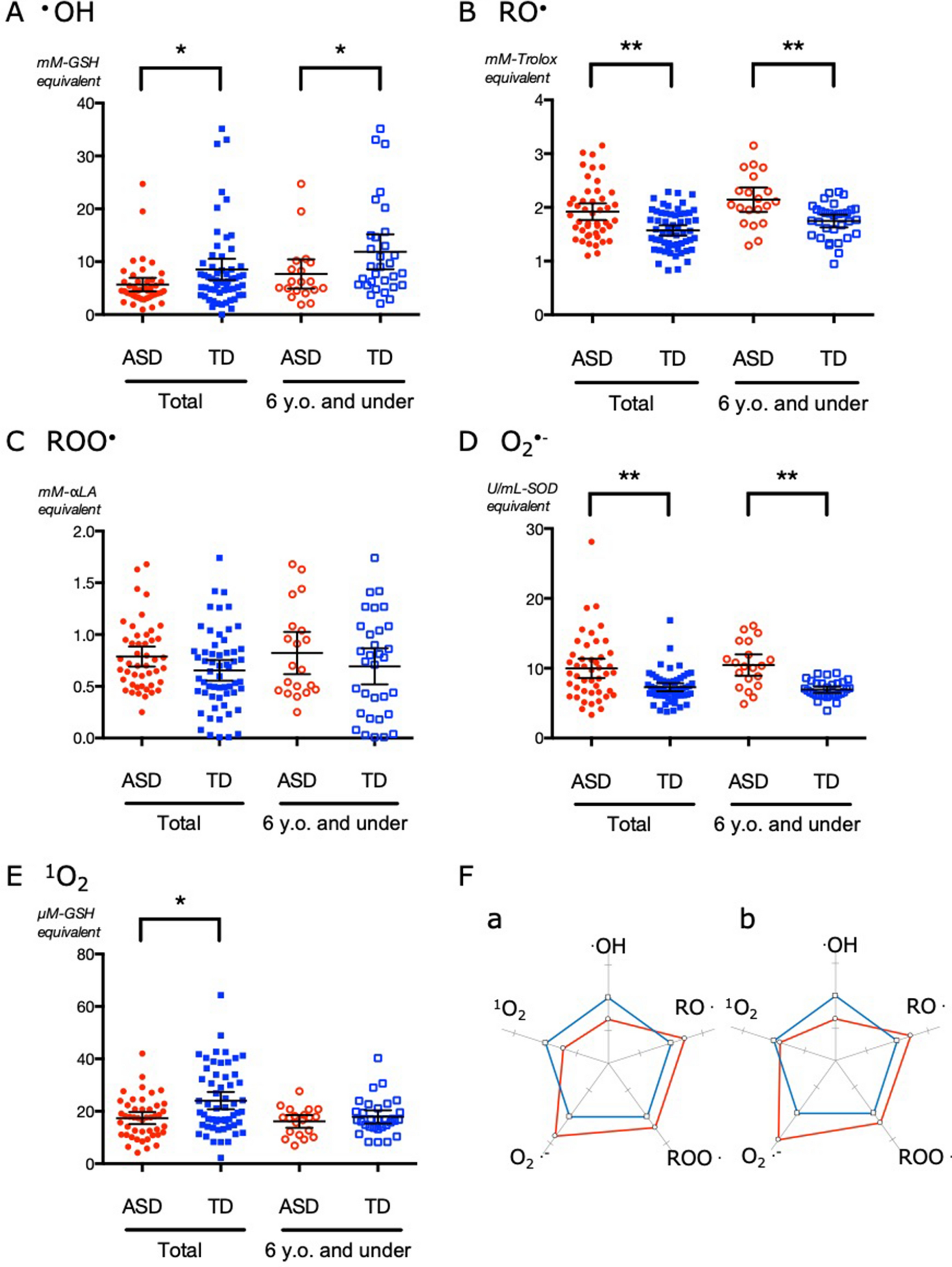

Serum antioxidative profiles against multiple reactive oxygen species (ROS) in the autism spectrum disorder (ASD) and typical development (TD) groups. The targeted ROS are ·OH (A), RO· (B), ROO· (C), O2·− (D), and 1O2 (E). The scavenging activities are converted into equivalent units of specific scavengers shown in Table 1. “6 y.o. and under” indicates the results in children 6 years old or younger in each group. Lines represent means ± 95% confidence intervals. *P < 0.05, **P < 0.01 between the two groups. (F) Radar charts of serum scavenging activities comparing the ASD and TD groups. (Fa) All participating children. (Fb) Children aged 6 years or younger. Percent differences in the scavenging activities in the ASD group (red) are shown with respect to those in the TD group (blue).
