Figure 6
From: Antarctic ice mass variations from 1979 to 2017 driven by anomalous precipitation accumulation

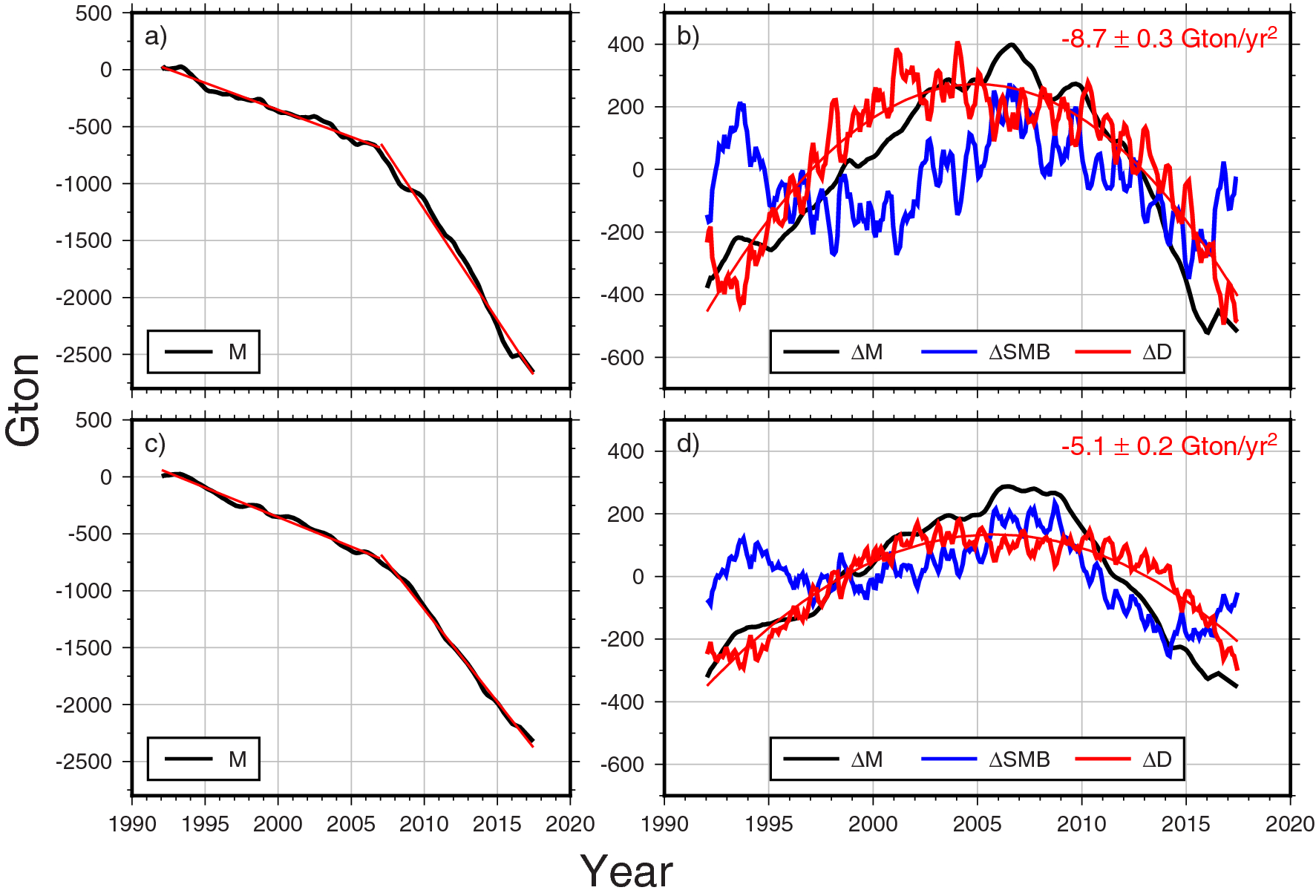

(a) AIS ice mass change from IMBIE2 estimates (black). Red lines represent linear trend fits before and after 2007. (b) Detrended variability of ice mass \(\Delta\) M (black), \(\Delta\) SMB (blue) and \(\Delta\) D (red). The red number indicates the acceleration rate estimated from the second order polynomial (\({a}_{0}+{a}_{1}t+\frac{1}{2}{a}_{2}{t}^{2}\)) fitting to \(\Delta\) D. (c,d) are similar to (a,b) except for West Antarctica. Figures are created with Generic Mapping Tools (GMT-5.4.5, https://gmt.soest.hawaii.edu/).
