Figure 3

From: Coherent combining of self-cleaned multimode beams

Figure 3

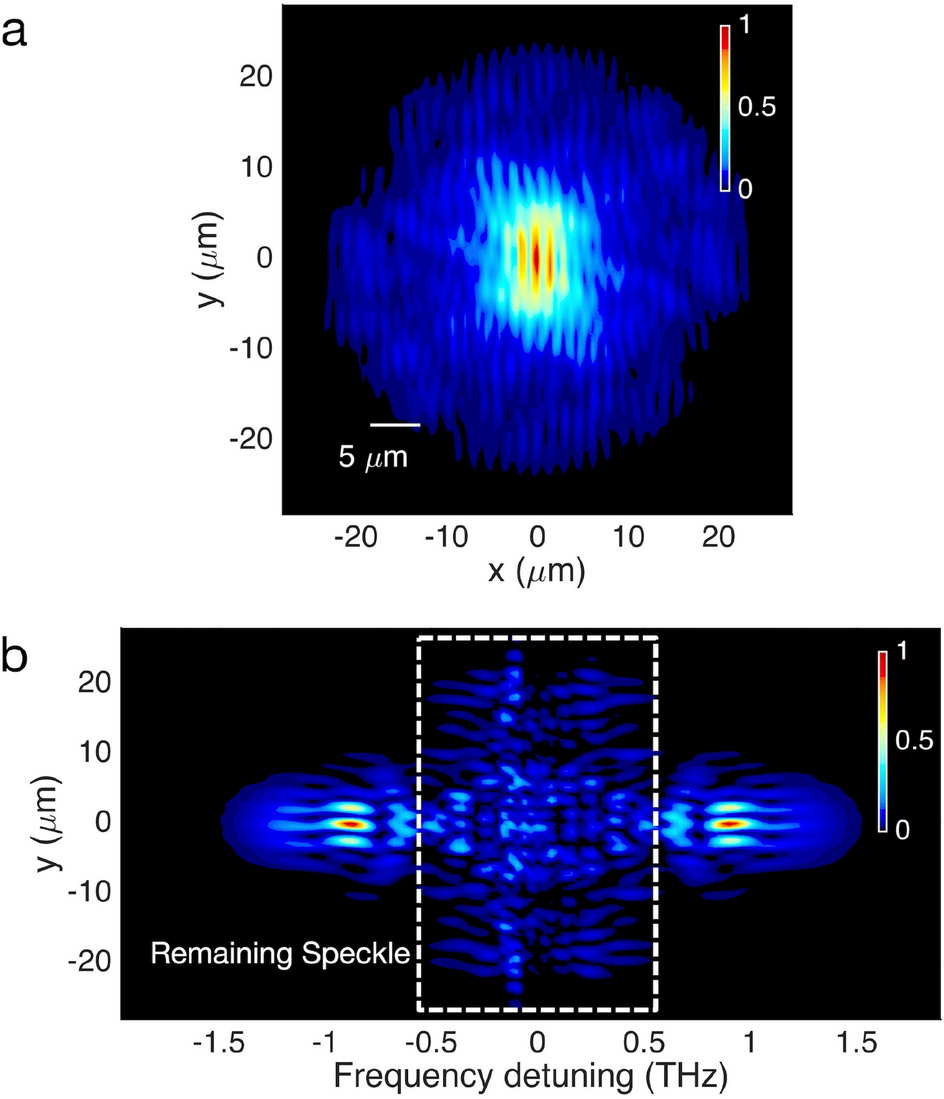

Numerical simulation of interferences between self-cleaned beams obtained from two different MMFs. (a) Time-averaged 2D interference pattern, numerically generated from two independent self-cleaned beams, and considering a linear polarization filtering. (b) Corresponding 1D interference pattern, projected as a function of frequency detuning from the pump.
