Figure 6
From: Depthwise microbiome and isotopic profiling of a moderately saline microbial mat in a solar saltern

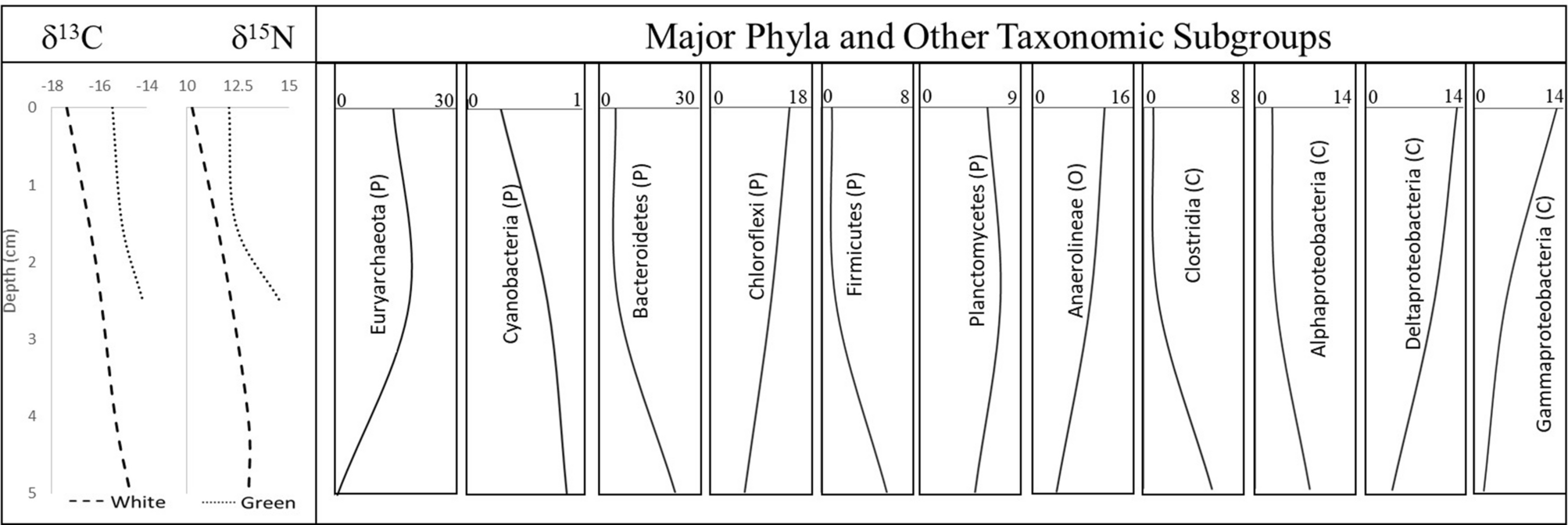

Depth-wise changes of δ13C and δ15N (‰) isotopic signature along with the major phyla (P) and other taxonomic subgroups (C, Class; O, order). The isotopic values for both white and green mats were chosen from the top, mid-DG, and bottom (Bot) sections at depths 0–1.5 cm, 1.5–2.5 cm, 2.5–5 cm, respectively. Similarly, the community representation was taken as an average of both white and green mats, with the values indicating the percentage within each taxa and not the percentage of the total sequences.
