Figure 3 | Scientific Reports

Figure 3

From: A possible precursor prior to the Lushan earthquake from GPS observations in the southern Longmenshan

Figure 3

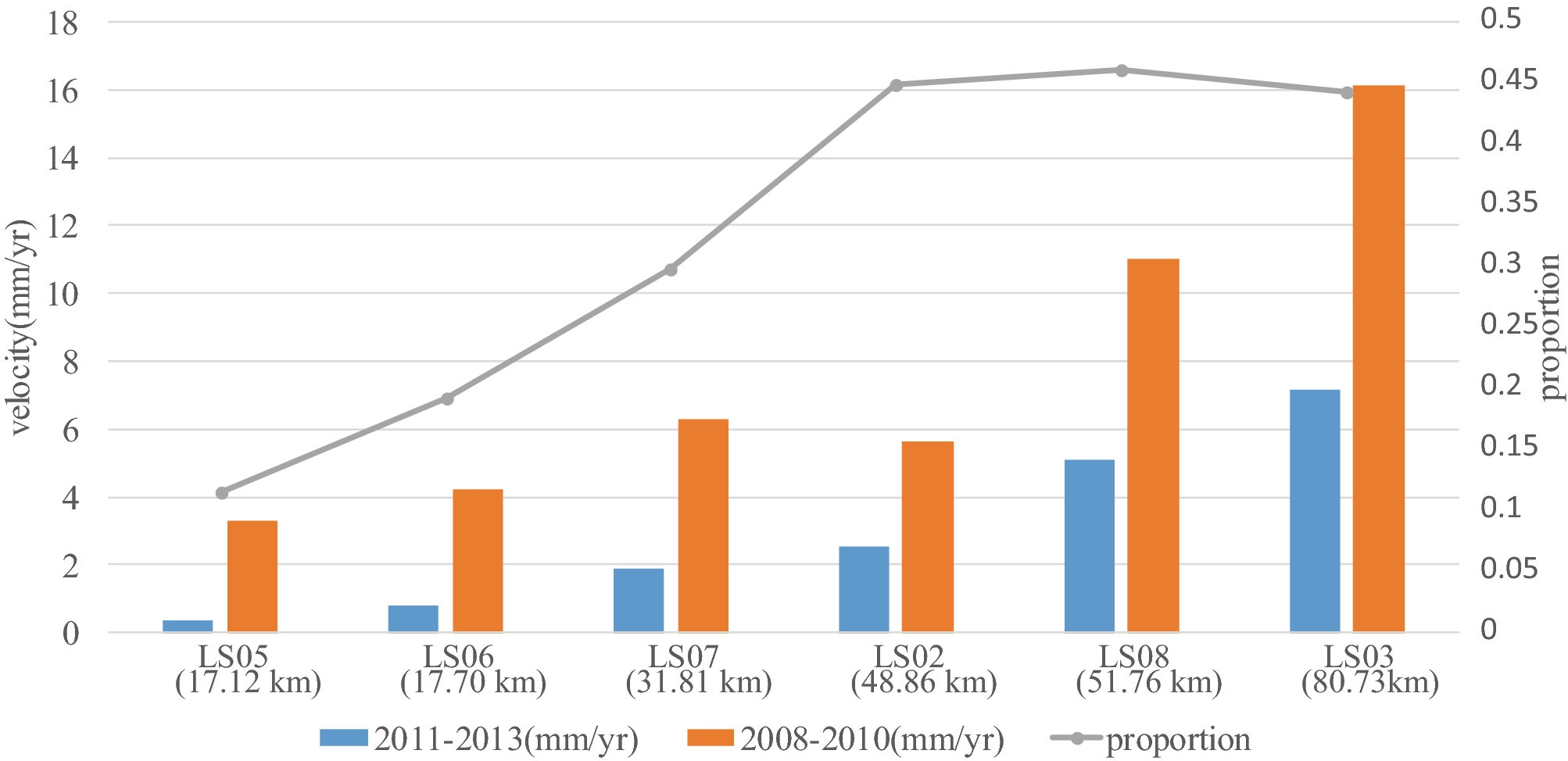

Eastward velocities during 2011–2013 and 2008–2010 and a comparison between the two periods. The abscissa is the name of the station and its epicentral distance. The bar chart displays the velocity of each station in the Bayan Har Block except LS10. The gray line is the difference between the velocity during 2011–2013 and that during 2008–2010. Map is generated by Matlab software, v. R2018a (https://www.mathworks.com/).
